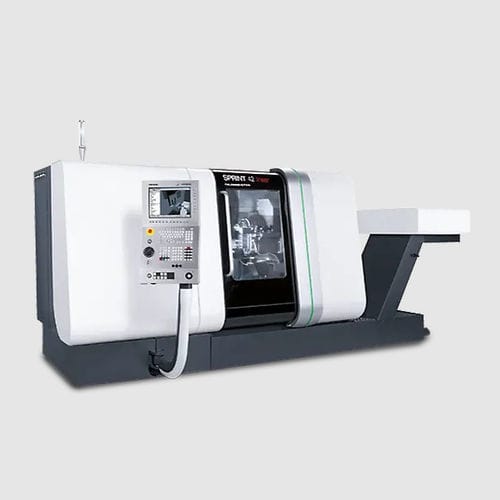

CNC turning center SPRINT 42 linear6-axis26 tools8 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 6-axis
- Number of tool stations
- 26 tools, 8 tools
- Performance
- high-precision, high-rigidity, high-speed
- Options and accessories
- with linear motor
- Diameter
42 mm
(1.65 in)- Spindle speed
6,500 rpm
(40,840.704 rad.min-1)- Maximum cutting length
320 mm
(13 in)- Bar capacity
42 mm
(2 in)- Axe X
50 mm
(2 in)- Axe Z
120 mm
(5 in)- Nominal power
3.7 kW, 5.5 kW
(5 hp, 7.5 hp)- Maximum torque
20 Nm, 38 Nm
(15 ft.lb, 28 ft.lb)
Description
Max. Y-axis stroke
350 mm
Driven tools spindles 5000 rpm, 3 Nm, 1.9 kW
Linear drive in X1 with 1 g acceleration for fastest dynamic and accuracy
DMG SLIMline featuring a 15" screen with FANUC 310i
Tool Monitoring System with graphical tool load display as option
Up to 2 tools working simultaneously
Constant stiffness due to large ball guide ways with balanced distance
Vertical covers and free chip fall
Integrated spindle motors for main and counter spindle with direct measuring systems
Thermo-symmetric machine bed design for highest accuracy
