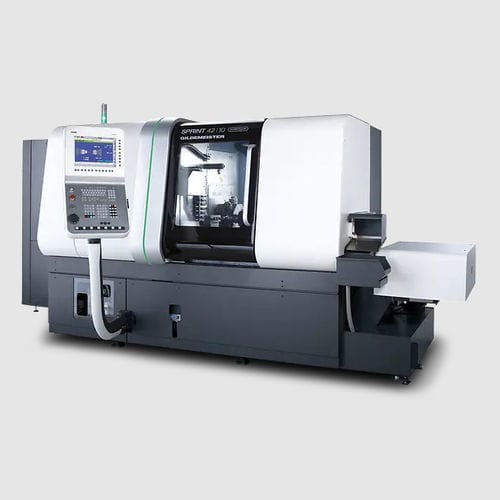

CNC turning center SPRINT 42|10 linear
8-axis22 toolshigh-rigidity

CNC turning center
CNC turning center
CNC turning center
CNC turning center
CNC turning center
CNC turning center
CNC turning center
CNC turning center
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
8-axis
Number of tool stations
22 tools
Performance
high-rigidity
Options and accessories
with linear motor
Diameter

42 mm
(1.65 in)

Spindle speed

6,500 rpm
(40,840.704 rad.min-1)

Maximum cutting length

320 mm
(13 in)

Bar capacity

42 mm
(2 in)

Axe X

50 mm
(2 in)

Axe Z

120 mm
(5 in)

Nominal power

3.7 kW, 5.5 kW
(5 hp, 7.5 hp)

Maximum torque

20 Nm, 38 Nm
(15 ft.lb, 28 ft.lb)

Description

The flexible design for long and short turning parts Max. Y-axis stroke 350 mm SWISSTYPEkit optional for short and long part turning on one machine Total of 30 tool stations Driven tools spindles 5000 rpm, 2.2 Nm, 0.55 kW (nominal) Linear drive in X1 and X3 with 1 g acceleration for fastest dynamic and accuracy DMG MORI SLIMline featuring a 15" screen with FANUC 310i Tool Monitoring System with graphical tool load display as option Up to 3 tools working simultaneously Constant stiffness due to large ball guide ways with balanced distance Vertical covers and free chip fall Integrated spindle motors for main and counter spindle with direct measuring systems Thermo-symmetric machine bed design for highest accuracy
