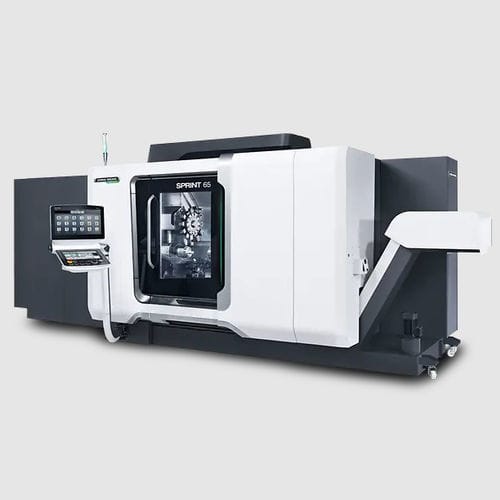

CNC turning center SPRINT 654-axisVDI 3012 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 4-axis
- Spindle mount
- VDI 30
- Number of tool stations
- 12 tools
- Turret
- double-turret, three-turret
- Performance
- high-productivity
- Diameter
175 mm
(6.89 in)- Spindle speed
5,000 rpm
(31,415.927 rad.min-1)- Maximum cutting length
420 mm
(17 in)- Bar capacity
65 mm
(3 in)- Axe X
165 mm
(6 in)- Axe Z
420 mm
(17 in)- Nominal power
18 kW, 22 kW
(24.5 hp, 29.9 hp)- Maximum torque
86 Nm, 150 Nm
(63 ft.lb, 111 ft.lb)
Description
Max. Y-axis stroke
80 mm
Up to 36 tool stations
B axis with torque motor and direct measure system
FANUC and SIEMENS ERGOline Full-HD touchscreen 21,5” with CELOS
CELOS APPs facilitate the consistent management, documentation and visualization of order, process and machine data
Up to 10 linear axes, 1 B-axis and 2 C-axes
Fanuc version with MAPPS V
Highly dynamic drivers in all axes for fast machining and minimal idle time
100% production-optimised design
Free chip fall due to vertical machine bed, no temperature influence
Thermostable and self rigid machine bed with 3-point-support
Machining of longer workpieces with two turrets and the patented TWIN design
Highest accuracy due to water cooled main and counter spindle
