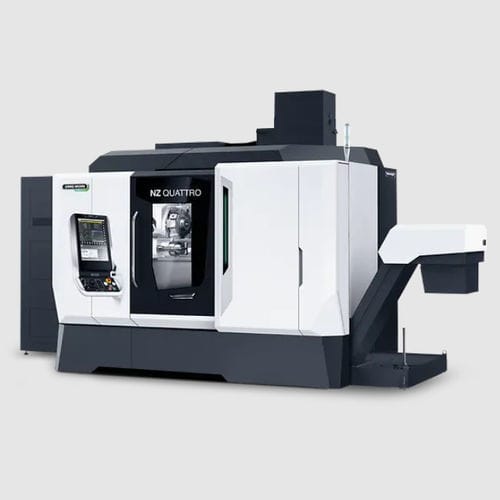

CNC milling-turning center NZ QUATTROhorizontal3-axisdouble-spindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Type
- horizontal
- Number of axes
- 3-axis
- Structure
- double-spindle
- Other characteristics
- high-performance, with turret, for the automobile industry
- Diameter
72 mm
(2.83 in)- X travel
210 mm
(8.27 in)- Y travel
80 mm
(3.15 in)- Z travel
1,290 mm
(50.79 in)- Spindle speed
4,000 rpm, 5,000 rpm, 7,000 rpm, 12,000 rpm
(25,132.741 rad.min-1, 31,415.927 rad.min-1, 43,982.297 rad.min-1, 75,398.224 rad.min-1)
Description
Max. workpiece length
1,290 mm
8 mm cutting radial depth at all 4 turret positions in CK 45 (65 mm cutting diameter // 270 m/min cutting speed // 750 cm3/min metal removal rate)
Milling Performance
12 stations for VDI 30 and BMT 40 or 16 stations for VDI 25 and BMT 45
B-axis
At all 4 positions possible
-10°– +100° swivel range
Standard tools instead of special angle tools & 5-axis simultaneous operation possible
Two independent work areas for 6-sided complete machining
Steady rest function
Ideal on long bed but possible also on short bed version
