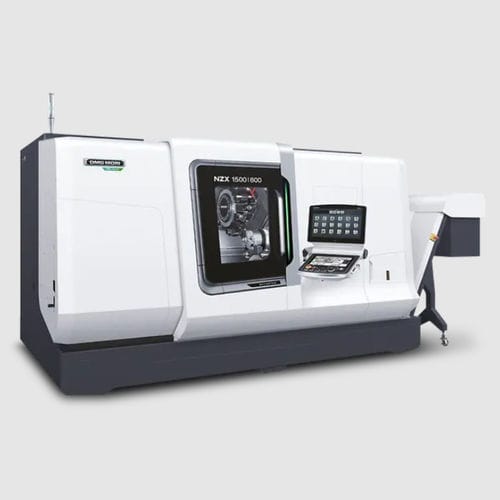

CNC milling-turning center NZX 1500horizontal3-axisspindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Type
- horizontal
- Number of axes
- 3-axis
- Structure
- spindle
- Other characteristics
- high-performance, high-precision, with turret, high-rigidity, high-speed, for the automobile industry
- Diameter
300 mm
(11.81 in)- X travel
210 mm
(8.27 in)- Y travel
110 mm
(4.33 in)- Z travel
810 mm
(31.89 in)- Spindle speed
12,000 rpm
(75,398.224 rad.min-1)
Description
Max. workpiece length
810 mm
Max. bar capacity diameter
52 mm
Milling
Up to 16 tools can be mounted on each turret
Thick and robust machine structure
ORC (Octagonal Ram Construction) maximizes the rigidity of the Turret 2 Y-axis
The turtleneck structure prevents chip accumulation on Turret 2
High-resolution direct scale feedback (option)
Rapid traverse rate :
30 / 20 / 50 m/min (98.4 / 65.6 / 164.1 fpm)
