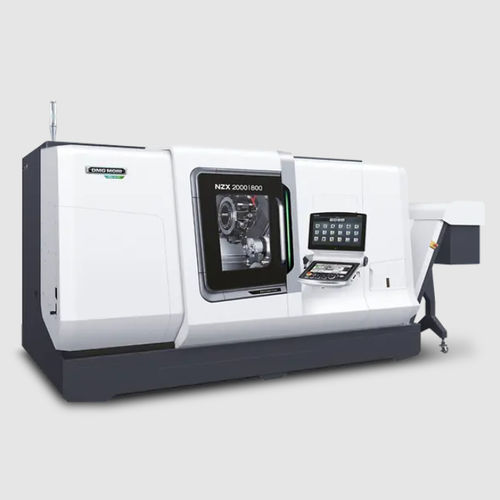

CNC milling-turning center NZX 2000horizontal3-axisspindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Type
- horizontal
- Number of axes
- 3-axis
- Structure
- spindle
- Other characteristics
- high-performance, high-precision, with turret, high-rigidity, high-speed, for the automobile industry
- Diameter
320 mm
(12.6 in)- X travel
210 mm
(8.27 in)- Y travel
110 mm
(4.33 in)- Z travel
810 mm
(31.89 in)- Spindle speed
6,000 rpm, 12,000 rpm
(37,699.112 rad.min-1, 75,398.224 rad.min-1)
Description
Max. workpiece diameter
320 mm
Max. workpiece length
300 mm
Milling
Up to 16 tools can be mounted on each turret
Thick and robust machine structure
ORC (Octagonal Ram Construction) maximizes the rigidity of the Turret 2 Y-axis
The turtleneck structure prevents chip accumulation on Turret 2
High-resolution direct scale feedback (option)
Rapid traverse rate :
30 / 20 / 50 m/min (98.4 / 65.6 / 164.1 fpm)
