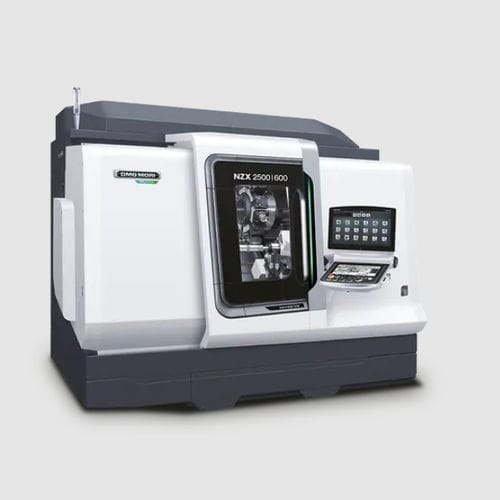

CNC milling-turning center NZX 2500horizontal3-axisspindle
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Type
- horizontal
- Number of axes
- 3-axis
- Structure
- spindle
- Other characteristics
- high-precision, with turret, high-rigidity, high-speed, for the automobile industry
- Diameter
370 mm
(14.57 in)- X travel
225 mm
(8.86 in)- Y travel
120 mm
(4.72 in)- Z travel
1,050 mm
(41.34 in)- Spindle speed
10,000 rpm
(62,831.853 rad.min-1)
Description
Overwhelming Manufacturing Capability Standing Out in Shaft & Flange Machining
Max. workpiece length
1,000 mm
Milling (option)
Turret equipped with BMT (Built-in Motor Turret)
Maximum rotary tool spindle torque：40 N•m (29.5 ft･lbf) [Option]
Slideways are used for all axes
High tailstock rigidity
Lightweight yet robust body achieved through FEM analysis
High-resolution direct scale feedback (option)
Improved machining accuracy thanks to the thermally stable structure
Reliability
Sophisticated spindle labyrinth structure
Outstanding chip disposal
