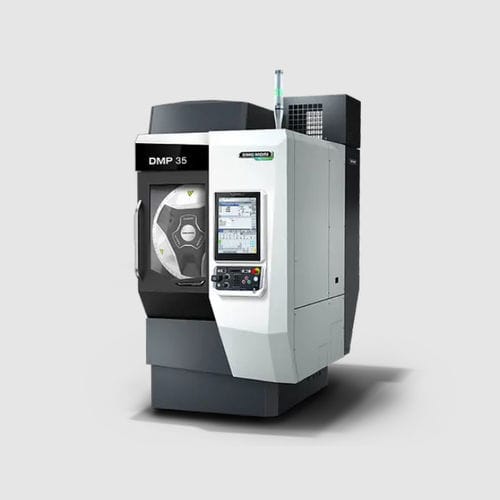

3-axis CNC milling center DMP 35
verticalfor the aerospace industryfor medical applications

3-axis CNC milling center
3-axis CNC milling center
3-axis CNC milling center
3-axis CNC milling center
3-axis CNC milling center
3-axis CNC milling center
3-axis CNC milling center
3-axis CNC milling center
3-axis CNC milling center
3-axis CNC milling center
3-axis CNC milling center
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Applications
for the aerospace industry, for medical applications
Other characteristics
high-precision, high-speed, compact, high-power
X travel

350 mm
(13.78 in)

Y travel

420 mm
(16.54 in)

Z travel

380 mm
(14.96 in)

Rotational speed

15,000 rpm, 24,000 rpm
(94,248 rad.min-1, 150,796 rad.min-1)

Workpiece max height

580 mm
(23 in)

Table load capacity

400 kg
(882 lb)

Description

Max. workpiece length 740 mm Max. workpiece width 420 mm Up to 2 g acceleration for quick chip-to-chip-time of only 1.5 seconds Machining of complex parts based on optional 5-axis simulataneous ability Comprehensive cooling measures and direct absolute path measuring system in basic machine Highest rigidity and milling performance with rapid traverses of 60 m/min in all axes Comprehensive portfolio of chip conveyors and coolant systems Latest technology and solutions for an even more efficient machining Automated 6-side complete machining in the field of medical as well as production Maximum spindle stiffness based on spring preloaded bearings Comprehensive portfolio of chip conveyors and coolant systems Minimal footprint of only 3.15 m² Best automation integration with workpiece handling system WH 3 Highly dynamic tool magazine with a chip-to-chip time of only 1.5 seconds Comprehensice cooling measures for a high thermal longterm accuracy

VIDEO
