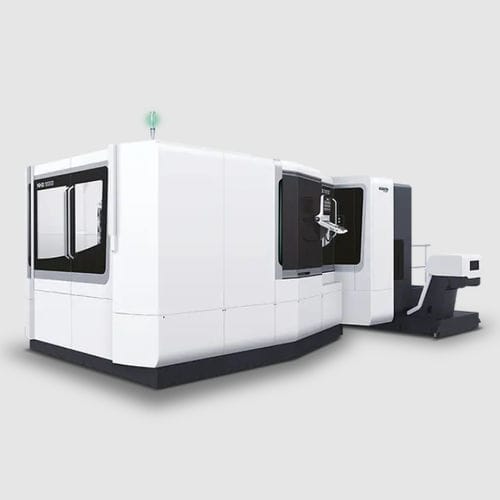

3-axis CNC milling center NHX 10000horizontalcuttingfor large workpieces
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Associated functions
- cutting
- Applications
- for large workpieces
- Other characteristics
- high-precision, high-performance, high-speed
- X travel
1,700 mm
(66.93 in)- Y travel
1,400 mm
(55.12 in)- Z travel
1,510 mm
(59.45 in)- Power
40 kW
(54.38 hp)- Workpiece max height
1,600 mm
(63 in)- Work feed X-axis
50 m/min
- Work feed Y-axis
50 m/min
- Work feed Z-axis
50 m/min
- Table load capacity
3,000 kg
(6,614 lb)
Description
Expert on machining of large and difficult-to-cut workpieces
Max. workpiece diameter
2,000 mm
Driven at the Center of Gravity
Box-in-Box construction
Max. acceleration X-, Y- and Z-axes: 0.62 / 0.51 / 0.45 G {6.1 / 5.0 / 4.4 m/s2 (20.0 / 16.4 / 14.4 ft/s2)}
Max. spindle torque: 1,413 N・m (1,042.2 ft・lbf) (option)
