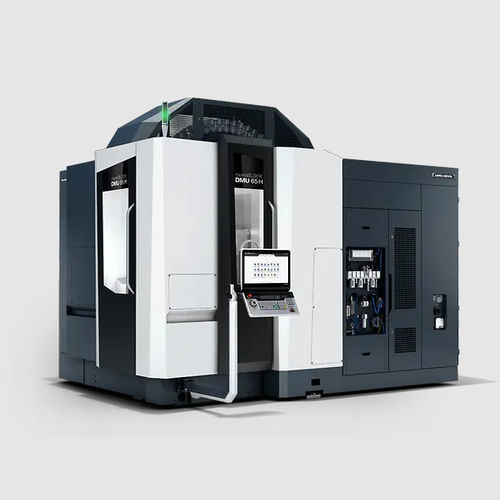

5-axis CNC milling center DMU 65 H (FD) monoBLOCKuniversalwith rotary tableHSK-A 100
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- universal
- Structure
- with rotary table
- Spindle mount
- HSK-A 100
- Applications
- for the automobile industry, for medical applications, for the semiconductor industry
- Other characteristics
- high-precision, high-productivity, rigid
- X travel
650 mm
(25.59 in)- Y travel
950 mm
(37.4 in)- Z travel
700 mm
(27.56 in)- Workpiece max height
770 mm
(30 in)- Table load capacity
600 kg
(1,323 lb)- Tool weight (max)
22 kg
(48.5 lb)- Positioning accuracy
5 µm
Description
Ergonomic
Ergonomic cab for easy access to the work area and easy set-up of components
Small footprint (13 m²) for high area productivity and slim design (2.6 m) for easy linking
Maximum process reliability through horizontal machining for ideal chip and heat dissipati
Versatile
Extensive selection of flexible automation solutions thanks to standardized interface
Stiff monoBLOCK concept
monoBLOCK – Maximum stability from one casting
Highest availability due to reinforced mass production technology and optimum maintenance access
Proven division of round and linear axes for easy to understand 5-axis kinematics.
Clamping of the swivelling rotary table
VIDEO
