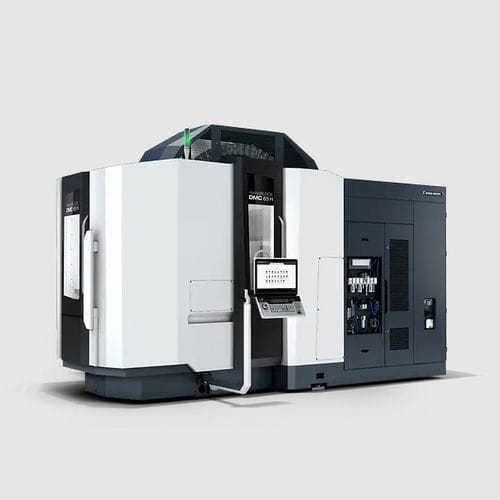

5-axis CNC milling center DMC 65 H (FD) monoBLOCK
universalwith rotary tableHSK-A 100

5-axis CNC milling center - DMC 65 H (FD) monoBLOCK - DMG MORI - universal / with rotary table / HSK-A 100
5-axis CNC milling center - DMC 65 H (FD) monoBLOCK - DMG MORI - universal / with rotary table / HSK-A 100
5-axis CNC milling center - DMC 65 H (FD) monoBLOCK - DMG MORI - universal / with rotary table / HSK-A 100 - image - 2
5-axis CNC milling center - DMC 65 H (FD) monoBLOCK - DMG MORI - universal / with rotary table / HSK-A 100 - image - 3
5-axis CNC milling center - DMC 65 H (FD) monoBLOCK - DMG MORI - universal / with rotary table / HSK-A 100 - image - 4
5-axis CNC milling center - DMC 65 H (FD) monoBLOCK - DMG MORI - universal / with rotary table / HSK-A 100 - image - 5
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
universal
Structure
with rotary table
Spindle mount
HSK-A 100
Other characteristics
high-precision, high-productivity
X travel

650 mm
(25.59 in)

Y travel

950 mm
(37.4 in)

Z travel

700 mm
(27.56 in)

Rotational speed

1,200 rpm
(7,540 rad.min-1)

Workpiece max height

700 mm
(28 in)

Table load capacity

600 kg
(1,323 lb)

Tool weight (max)

22 kg
(48.5 lb)

Positioning accuracy

5 µm

Description

Ergonomic Ergonomic cab for easy access to the work area and easy set-up of components Fast double pallet changer for shortest non-productive times due to loading during machining Maximum process reliability through horizontal machining for ideal chip and heat dissipation Versatile Extensive selection of flexible automation solutions thanks to standardized interface Stiff monoBLOCK concept monoBLOCK – Maximum stability from one casting Highest availability due to reinforced mass production technology and optimum maintenance access Clamping of the swivelling rotary table
