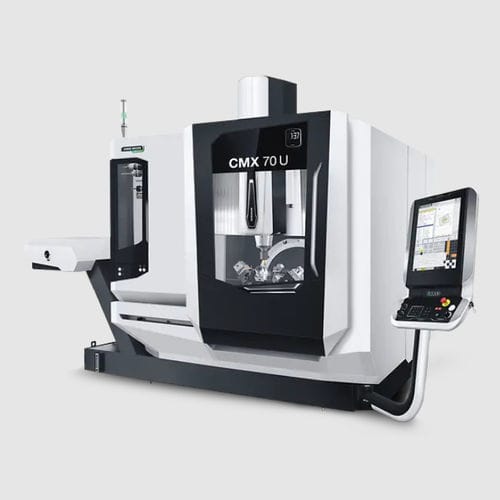

5-axis CNC milling center CMX 70 Uverticalrotating table30 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- rotating table
- Number of tool stations
- 30 tools
- Applications
- heavy-duty
- Other characteristics
- high-precision, high-productivity
- X travel
750 mm
(29.53 in)- Y travel
600 mm
(23.62 in)- Z travel
520 mm
(20.47 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
13 kW
(17.68 hp)- Workpiece max height
560 mm
(22 in)- Work feed X-axis
30,000 mm/min
(20 in/s)- Work feed Y-axis
30,000 mm/min
(20 in/s)- Work feed Z-axis
30,000 mm/min
(20 in/s)- Table load capacity
350 kg
(772 lb)- Tool-changing time
2.7 s
Description
Rigid table thanks to FEM-optimized design for machining of heavy parts
Thermal compensation for highest quality production processes
Increase your efficiency and productivity with the CMX U series
Highest precision thanks to direct measuring system in standard
30-pocket tool magazine in standard with quick tool change within 2.7 s
The best choice of 3D controls - with SIEMENS or HEIDENHAIN
19" DMG MORI SLIMline multi-touch control panel and SIEMENS for intuitive use and easy operation
19" DMG MORI SLIMline multi-touch control panel and HEIDENHAIN for easy and efficient programming
DMG MORI SMARTkey: Personalized with 8 GB additional storage
NEW: inlineMASTER spindle
Improved cutting performance due to 53 % higher spindle power and 45 % higher torque with the 15.000 min−1 inlineMASTER (20 kW, 121 Nm with 40 % ED)
BIG PLUS®-interface for longer tool life
NEW: IoTconnector for digitized and connected production processes
DMG MORI NETservice and MESSENGER preinstalled
Specially preconfigured for your machine prior to delivery
Integrated firewall with automatic updates guarantees maximum protection
