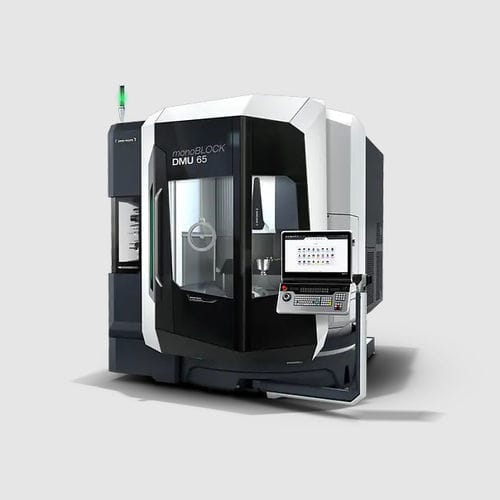

5-axis CNC milling center DMU 65 (FD) monoBLOCK 2nd Generation
verticalfor moldsfor the aerospace industry

5-axis CNC milling center
5-axis CNC milling center
5-axis CNC milling center
5-axis CNC milling center
5-axis CNC milling center
5-axis CNC milling center
5-axis CNC milling center
5-axis CNC milling center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Applications
for molds, for the aerospace industry, for medical applications
Other characteristics
precision, high-performance, compact
X travel

735 mm
(28.94 in)

Y travel

650 mm
(25.59 in)

Z travel

560 mm
(22.05 in)

Rotational speed

30,000 rpm
(188,496 rad.min-1)

Workpiece max height

500 mm
(20 in)

Table load capacity

1,000 kg
(2,205 lb)

Positioning accuracy

4 µm

Description

Ergonomic Large door opening of 1,310 mm and unique access to the working area, most compact machine with a footprint of just 8 m² Quick and easy to set up thanks to its three-point support Comprehensive cooling measures, high-performance coolant unit and multi-sensor compensation as standard Direct driven ball screws in X and Y Versatile Machine-integrated tool magazines with up to 240 pockets Stiff monoBLOCK concept monoBLOCK – Maximum stability from one casting One-piece column with large, stable slideways, 45 mm roller guideways in all axes Maximum stability thanks to large ball screws in all axes ø 40 / 50 / 40 mm FEM optimization of all components Clamping of the swivelling rotary table
