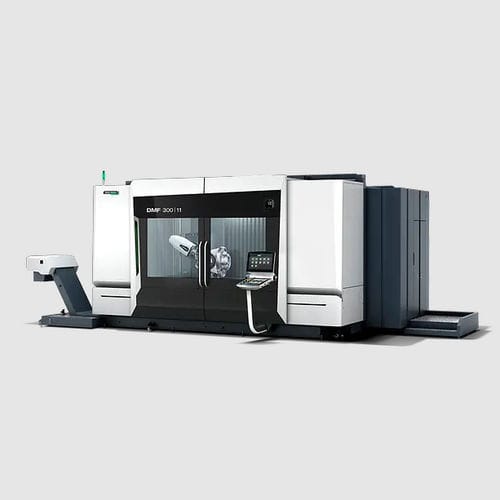

CNC milling-turning center DMF 300|​​11 (FD)

vertical5-axistraveling-column

Maximum Flexibility 4-axes or 5-axes machining with B-axis and integrated NC rotary table Mill-Turn technology for machining of highly complex geometrics on one machine (optional) New basic construction with constant overhang in the whole working area 3 linear guide ways in X-axis and single piece machine bed made of cast iron Spindles from 15,000 to 20,000 rpm and up to 200 Nm (HSK-A100 interface on demand) High accuracy and best surface quality of the machined workpieces Very high thermal long-term accuracy based on comprehensive cooling measures, e.g. inner cooled ball screws Helical toothed belt and grinded ball screws in all axes Dynamic package with linear drive in X-axis (optional) Maximum productivity for your shopfloor Unique tool change outside of the working area Tool magazine with up to 120 pockets and a tool length of up to 400 mm Variety of machine tables - perfect for all requirements Avoidance of idle times based on the optional partition wall (optional) Increase of productivity based on DMG MORI Technology Cycles, e.g. angularTOOL
