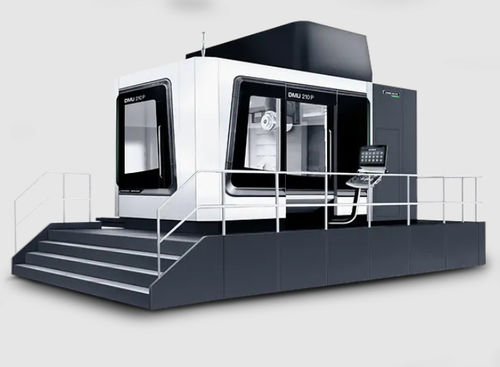

CNC milling-turning center DMU 210 P (FD)

vertical5-axisspindle

Complete machining Milling and turning in one setup with the DirectDrive table with a torque up to 6,800 Nm Best surface quality with technology integration grinding Precision Maximum accuracy through water-cooled feed drive Band filter unit with 980 l as standard Highest long-term accuracy due to cooled linear guideways and active spindle growth control. Performance High dynamics with feed speed up to 60,000 mm/min Also available in mill- /turn - version High feed power up to 40 kN Biggest spindle range in the market: powerMASTER motor spindle with up to 1,000 Nm and torqueMASTER gear spindle with 1,800 Nm Efficiency Lower energy consumption through intelligent needs-based power units. Gantry design with vertically moving cross beam with hydraulic weight compensation. Fast innovative wheel type magazine with up to 303 tools with minimized footprint. Highest rigidity and dynamics up to 6 m/s² Thermosymetrical construction 3-point support with an inherently stiff machine bed, no foundation required High temperature stability standard with positioning accuracy down to 10 µm Position accuracy down to 8 µm with accuracy pack option Worldwide unique high precision varinat µPrecision with Position accuracy down to 4 µm
