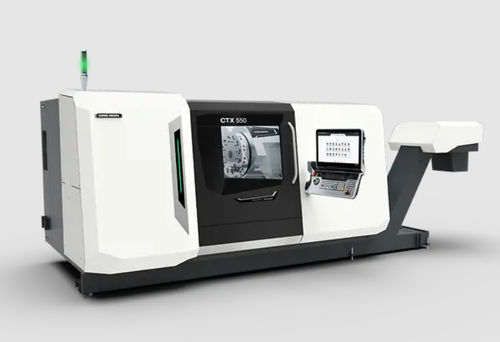

CNC turning center CTX 550
3-axisuniversalA2-8

CNC turning center
CNC turning center
CNC turning center
CNC turning center
CNC turning center
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
3-axis
Structure
universal
Spindle mount
A2-8
Other characteristics
Y-axis
Diameter

480 mm
(18.9 in)

Spindle speed

3,250 rpm
(20,420.352 rad.min-1)

Maximum part length

1,225 mm
(48 in)

Bar capacity

102 mm
(4 in)

Axe X

310 mm
(12 in)

Axe Z

1,225 mm
(48 in)

Nominal power

36 kW, 40 kW
(48.9 hp, 54.4 hp)

Description

High accuracy universal turning centers for medium-size parts Max. Y-axis stroke 130 mm Increased Y axis capability with +/- 65 mm stroke Modular system with expansion levels from universal turning to complete machining in all sizes Complete machining by optional counter spindle and star turret High Precision Turrets ready for 50 bar coolant pressure, with air/oil lubrication, 100% Duty cycle in milling Innovative solutions for production increasing and optimized energy efficiency Ready for automation with 6-axis robot interface, predisposition for Robo2Go and Robo2Go max and Matris High energy savings thanks to use of synchron (IPM) motors and hydraulic pumps with inverter control Maximum stability and long-term accuracy Dynamic and precise C-axis control​ by measuring system on front bearings Maximum thermal stability thanks to water-cooled, integrated spindle motors Unrivalled long-term precision with direct measuring systems in the X-axis and Y-axis as standard
