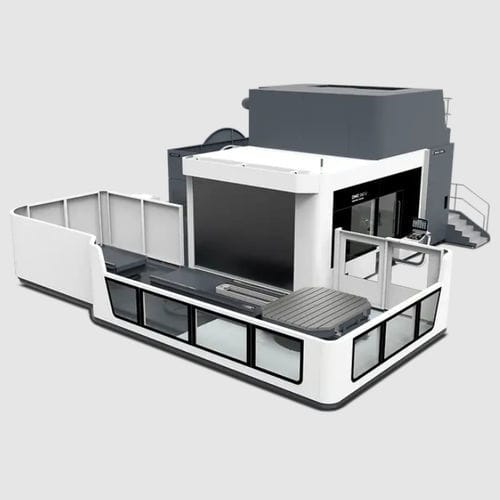

5-axis CNC milling center DMC 340 U (FD)
verticalfor the aerospace industryprecision

5-axis CNC milling center
5-axis CNC milling center
5-axis CNC milling center
5-axis CNC milling center
5-axis CNC milling center
5-axis CNC milling center
5-axis CNC milling center
5-axis CNC milling center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
vertical
Applications
for the aerospace industry
Other characteristics
precision, direct-drive
X travel

3,400 mm
(133.86 in)

Y travel

3,400 mm
(133.86 in)

Z travel

2,000 mm
(78.74 in)

Workpiece max height

1,960 mm
(77 in)

Work feed X-axis

60,000 mm/min
(39 in/s)

Work feed Y-axis

60,000 mm/min
(39 in/s)

Work feed Z-axis

60,000 mm/min
(39 in/s)

Table load capacity

10,000 kg
(22,046 lb)

Description

Complete machining Milling and turning in one setup with the DirectDrive table with a torque up to 10,200 Nm Best surface quality with technology integration grinding Precision Maximum accuracy through water-cooled feed drive Band filter unit with 2,500 l as standard Highest long-term accuracy due to cooled linear guideways and active spindle growth control. Performance Also available in mill- /turn - version Pallet changer for main time parallel setup as standard Biggest spindle range in the market: powerMASTER motor spindle with up to 1,000 Nm and torqueMASTER gear spindle with 1,800 Nm Efficiency Lower energy consumption through intelligent needs-based power units. Gantry design with vertically moving cross beam with hydraulic weight compensation. Fast innovative wheel type magazine with up to 243 tools with minimized footprint.
