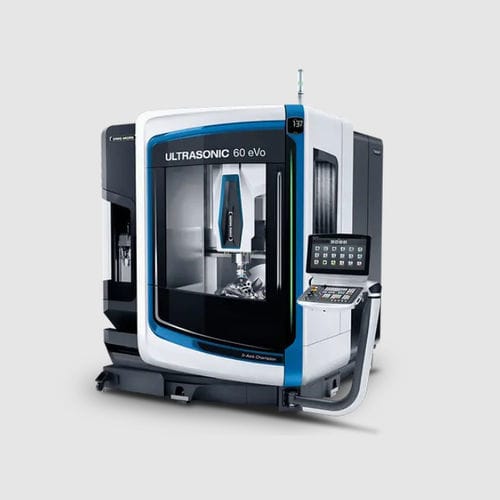

5-axis machining machine 60 eVo linear

universalwith rotary tableHSK A-63

Process forces reduced by up to 50% through ULTRASONIC enable, depending on requirements: higher feed rates, improved surface quality up to Ra <0.1 µm, longer tool life Specific coolant treatment systems with centrifuges, optimized for the ULTRASONIC processing of Advanced Materials Constant amplitude in the process to ensure reproducibility Automatic detection of the working frequency, significantly improved hardware for signal acquisition Frequency tracking and simultaneous power control in real time for optimal process stability Ensuring the ULTRASONIC advantages even with non-optimal tools Fully compatible with 2nd generation ULTRASONIC actuator Swivel range of the B-axis -5/ +110° Cooling of table unit table bearings and drives Mill-Turn Operation Speed of the C-axis up to bis 1,200 rpm Accuracy Cooling of table unit, table bearings and drives Cooling of bearings and spindle nuts of ball screw drives Cooled guideways in the linear axes X/Y/Z
