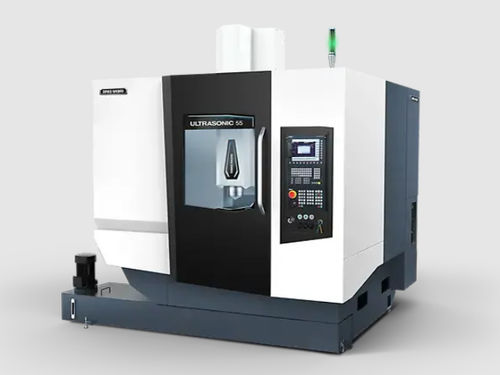

CNC micro-drilling machine 55

high precisioncompact

Fully integrated ULTRASONIC micro drilling spindle with up to 35,000 rpm Process-reliable production of micro holes from ø 0.1 mm (depending on the material and parameters) High-precision drilling force control for process stability (< 1 N), drilling with constant force and permanent tool wear control Automatic core ejector for drill cores Ultra-low-flow internal coolant supply (up to 40 bar), flow monitoring with resolution < 1 ml - always suitable cooling Compact, stiff, stable Massive, thermally stable monolithic machine bed weighing 2,400 kg High static and dynamic rigidity as well as perfect damping properties Perfect machining performance thanks to high rigidity Rigid table Constant dynamics (constant moving mass of the X, Y and Z slides; rigid table & workpiece!) Stable support for the work table SIEMENS SINUMERIK ONE Combines CNC, HMI, PLC, closed-loop control and communication tasks within a single PPU 15” multi-touch control panel
