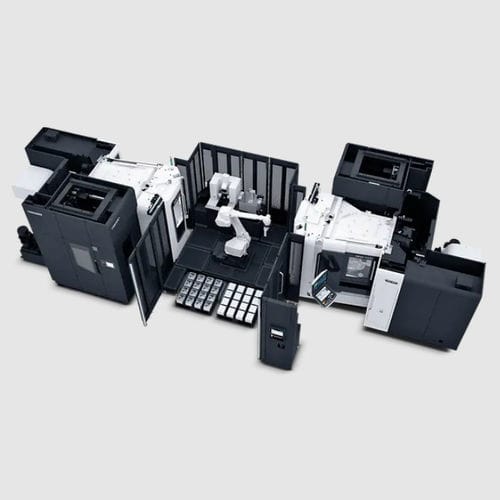

Robotic loading cell MATRIS

handlingfor machining centers

Flexible modular robot system for ≥ 1 machine Modular concept with standardized peripheral devices, e. g. washing, measuring or marking 80 % shorter setup time due to modular and standardized peripherals and robot programs Flexible adaptation to system changes including after installation Simple and easy operation via the MATRIS control system without programming Handling of workpieces up to ø 200 × 200 mm, 1 × 20 kg or 2 × 10 kg Stacking magazine: 14, 20 and 26 pallets: ø 150 × 120 mm, max. 35 kg per pallet 10 and 20 pallets: ø 200 × 200 mm, max. 75 kg per pallet Loading of oversized tooling in case of vertical machining center Available for 13 series, e. g. NLX, NTX, NHX, DMU, NMV, eVo, etc. Ideal for the flexible production of 50 to 200 workpieces / day Space-saving pallet handling for up to 40 pallets 400 × 400 mm pallet size 150 kg transfer weight (workpiece and pallet) Integration of secondary processes such as deburring or marking possible Available for the CMX 50 U, CMX 70 U, DMU 50, DMU 65 monoBLOCK, CMX 600 V, CMX 800 V, CMX 1100 V
