CNC turning center PUMA TT series
multi-axis2-spindle12 tools

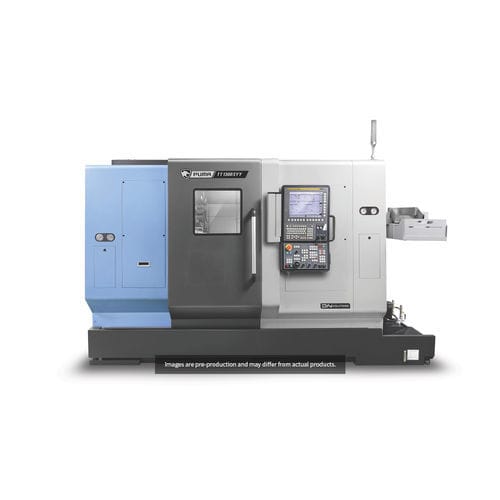

CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 2
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 3
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 4
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 5
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 6
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 7
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 8
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 9
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 10
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 11
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 12
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 13
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 14
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 15
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 16
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 17
CNC turning center - PUMA TT series  - DN SOLUTIONS - multi-axis / 2-spindle / 12 tools - image - 18
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
multi-axis
Number of spindles
2-spindle
Number of tool stations
12 tools
Turret
double-turret
Applications
for mass production
Performance
high-precision, high-rigidity, high-productivity, powerful, high-capacity
Other characteristics
Y-axis
Diameter

175 mm, 230 mm, 300 mm, 390 mm
(6.89 in, 9.06 in, 11.81 in, 15.35 in)

Spindle speed

3,500 rpm, 5,000 rpm, 6,000 rpm
(21,991.149 rad.min-1, 31,415.927 rad.min-1, 37,699.112 rad.min-1)

Maximum part length

120 mm, 230 mm, 350 mm
(5 in, 9 in, 14 in)

Rapids on X

20 m/min, 30 m/min

Rapids on Z

24 m/min, 40 m/min

Nominal power

11 kW, 22 kW, 25 kW, 26 kW
(15 hp, 29.9 hp, 34 hp, 35.4 hp)

Maximum torque

93 Nm, 116 Nm
(69 ft.lb, 86 ft.lb)

Overall lenght

3,405 mm, 3,510 mm, 3,880 mm, 3,905 mm, 4,050 mm
(134 in, 138 in, 153 in, 154 in, 159 in)

Overall width

2,210 mm, 2,250 mm, 2,300 mm, 2,360 mm
(87 in, 89 in, 91 in, 93 in)

Overall height

2,070 mm, 2,080 mm, 2,250 mm, 2,480 mm
(81 in, 82 in, 89 in, 98 in)

Weight

8,800 kg, 9,500 kg, 9,600 kg, 12,700 kg
(19,401 lb, 20,944 lb, 21,164 lb, 27,999 lb)

Description

The PUMA TT is a horizontal turning center designed and built for the fast and mass production of high precision automotive or medical parts. Featuring live tooling, a Y-axis and a built-in sub-spindle TT machines deliver an impressive simultaneous machining solution. Excellent Machining Capability Multitasking Capability Faster Machining Equipped with an advanced finished-part removal system for both spindles The left and right spindles are equipped with independent parts catcher and unloader systems. Fully automated manufacturing system.
