5-axis CNC machining center DHF 800 series
horizontalBT 50HSK-A 100

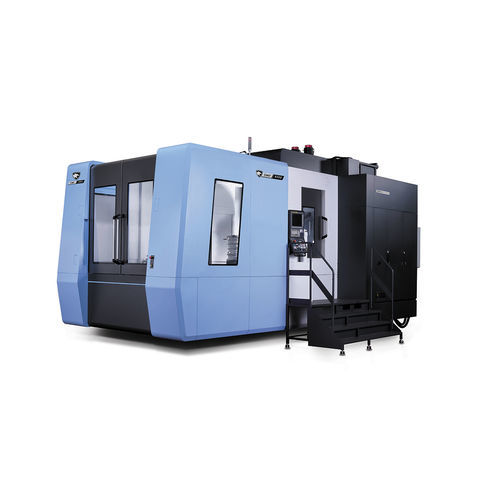

5-axis CNC machining center - DHF 800 series - DN SOLUTIONS - horizontal / BT 50 / HSK-A 100
5-axis CNC machining center - DHF 800 series - DN SOLUTIONS - horizontal / BT 50 / HSK-A 100
5-axis CNC machining center - DHF 800 series - DN SOLUTIONS - horizontal / BT 50 / HSK-A 100 - image - 2
5-axis CNC machining center - DHF 800 series - DN SOLUTIONS - horizontal / BT 50 / HSK-A 100 - image - 3
5-axis CNC machining center - DHF 800 series - DN SOLUTIONS - horizontal / BT 50 / HSK-A 100 - image - 4
5-axis CNC machining center - DHF 800 series - DN SOLUTIONS - horizontal / BT 50 / HSK-A 100 - image - 5
5-axis CNC machining center - DHF 800 series - DN SOLUTIONS - horizontal / BT 50 / HSK-A 100 - image - 6
5-axis CNC machining center - DHF 800 series - DN SOLUTIONS - horizontal / BT 50 / HSK-A 100 - image - 7
5-axis CNC machining center - DHF 800 series - DN SOLUTIONS - horizontal / BT 50 / HSK-A 100 - image - 8
5-axis CNC machining center - DHF 800 series - DN SOLUTIONS - horizontal / BT 50 / HSK-A 100 - image - 9
5-axis CNC machining center - DHF 800 series - DN SOLUTIONS - horizontal / BT 50 / HSK-A 100 - image - 10
5-axis CNC machining center - DHF 800 series - DN SOLUTIONS - horizontal / BT 50 / HSK-A 100 - image - 11
5-axis CNC machining center - DHF 800 series - DN SOLUTIONS - horizontal / BT 50 / HSK-A 100 - image - 12
5-axis CNC machining center - DHF 800 series - DN SOLUTIONS - horizontal / BT 50 / HSK-A 100 - image - 13
5-axis CNC machining center - DHF 800 series - DN SOLUTIONS - horizontal / BT 50 / HSK-A 100 - image - 14
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
horizontal
Spindle mount
BT 50, HSK-A 100, HSK-T100
Number of tool stations
60 tools
Other characteristics
high-productivity, high-precision, high-rigidity
X travel

1,450 mm
(57.09 in)

Y travel

1,200 mm
(47.24 in)

Z travel

1,500 mm
(59.06 in)

Rotational speed

6,000 rpm
(37,699 rad.min-1)

Power

22 kW, 35 kW
(29.91 hp, 47.59 hp)

Work feed X-axis

40 m/min

Work feed Z-axis

50 m/min

Table load capacity

2,000 kg
(4,409 lb)

Weight

34,000 kg
(74,957.17 lb)

Overall length

11,835 mm
(465.9 in)

Overall width

5,830 mm
(229.5 in)

Overall height

4,075 mm
(160.4 in)

Description

The DHF 8000 is a large-capacity 5-axis twin-pallet horizontal machining center that provides users with full 5-axis simultaneous machining capabilities. Easy to Operate Multitasking Capability Stability Easy chip disposal The machines’ central chip removal system improves operational efficiencies.

VIDEO
