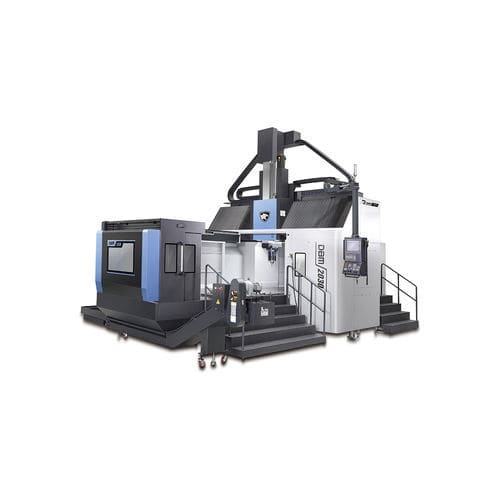

3-axis CNC machining center DBM seriesverticaldouble-columnISO 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Spindle mount
- ISO 50
- Number of tool stations
- 40 tools
- Applications
- for molds
- Other characteristics
- high-speed, high-performance, high-productivity, high-precision
- X travel
3,250 mm, 4,250 mm, 5,250 mm, 6,250 mm, 8,250 mm
(127.95 in, 167.32 in, 206.69 in, 246.06 in, 324.8 in)- Y travel
2,500 mm, 3,000 mm, 3,500 mm
(98.43 in, 118.11 in, 137.8 in)- Z travel
800 mm
(31.5 in)- Rotational speed
6,000 rpm
(37,699 rad.min-1)- Power
37 kW, 55 kW, 1,009 kW
(50.31 hp, 74.78 hp, 1,371.86 hp)- Table load capacity
15,000 kg, 17,000 kg, 20,000 kg, 32,000 kg, 35,000 kg
(33,069 lb, 37,479 lb, 44,092 lb, 70,548 lb, 77,162 lb)- Weight
Max.: 70,000 kg
(154,323.58 lb)Min.: 33,000 kg
(72,752.55 lb)- Overall length
Max.: 22,350 mm
(879.9 in)Min.: 11,600 mm
(456.7 in)- Overall width
7,650 mm, 8,200 mm, 8,600 mm
(301.2 in, 322.8 in, 338.6 in)- Overall height
5,100 mm
(200.8 in)
Description
The DBM series comprises multi-purpose double-column machining centers without W-axes for applications such as the heavy duty machining of large parts and high precision dies and molds. Designed with the highest specifications in its class, the DBM series is renowned for its broad range of machining capabilities, its range of optional equipment and an array of convenient functions for the operator.
Easy to Operate
Stability
Broad range of machining capabilities
Auto-change attachments
Convenient machining functions
Easy pattern cycles
Work load counter control
Automatic feed control
VIDEO
Catalogs
No catalogs are available for this product.
See all of DN SOLUTIONS‘s catalogs
