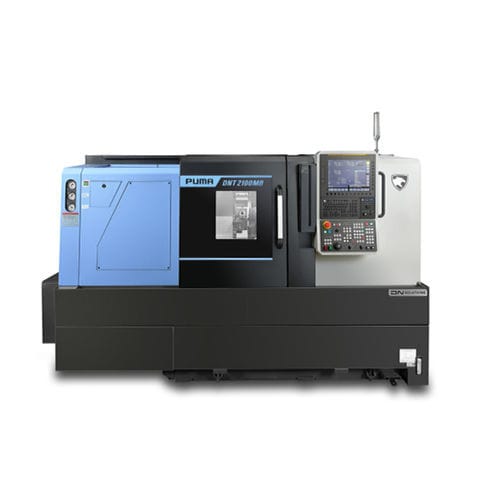

CNC turning center PUMA DNT series2-axis24 tools12 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Number of tool stations
- 12 tools, 10 tools, 24 tools
- Drive system
- servo-driven
- Applications
- heavy-duty, for large workpieces
- Performance
- high-productivity, high-performance
- Diameter
400 mm, 460 mm
(15.75 in, 18.11 in)- Spindle speed
3,500 rpm, 4,500 rpm
(21,991.149 rad.min-1, 28,274.334 rad.min-1)- Maximum part length
550 mm, 562 mm, 658 mm, 1,078 mm
(22 in, 22 in, 26 in, 42 in)- Axe X
230 mm, 260 mm
(9 in, 10 in)- Axe Z
580 mm, 581 mm, 680 mm, 1,100 mm
(23 in, 23 in, 27 in, 43 in)- Rapids on X
24 m/min
- Rapids on Z
30 m/min
- Nominal power
15 kW, 18.5 kW, 26 kW
(20.4 hp, 25.2 hp, 35.4 hp)- Overall lenght
2,945 mm, 3,355 mm, 3,800 mm
(116 in, 132 in, 150 in)- Overall width
1,664 mm, 1,729 mm, 1,839 mm
(66 in, 68 in, 72 in)- Overall height
1,780 mm
(70 in)- Weight
3,700 kg, 3,800 kg, 4,300 kg, 4,900 kg
(8,157 lb, 8,378 lb, 9,480 lb, 10,803 lb)
Description
If you need for a heavy-duty standard turning center, the newly designed PUMA DNT machines with their high performance spindles and large work areas, give you a best-in-class, high-productivity turning solution.
Easy to Operate
Reliability
Excellent Machining Capability
Redesigned Box-guide way
With a box guideway structure and impressive spindle power, the PUMA DNT brings stability to its impressive cutting capabilities.
More diversity &Outstanding productivity
High torque spindle option
Various tailstock type
Servo auto door for automation option
Improved user-friendly features
No chip accumulation in the internal machine space
Inverter type of chip conveyor
User-friendly operation panel
Steady rest installation that is easy to retrofit
