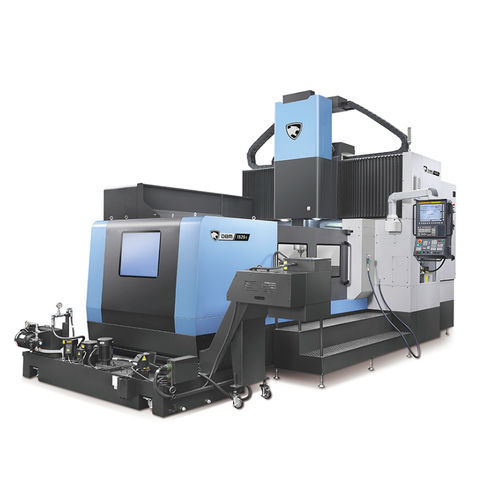

3-axis CNC machining center DBM 1525sverticaldouble-columnISO 50
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- double-column
- Spindle mount
- ISO 50
- Number of tool stations
- 40 tools
- Associated functions
- cutting
- Applications
- for molds, for large workpieces
- Other characteristics
- high-speed, high-precision, high-rigidity, with tool changer
- X travel
2,800 mm
(110.24 in)- Y travel
1,350 mm
(53.15 in)- Z travel
750 mm
(29.53 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
25 kW, 30 kW
(33.99 hp, 40.79 hp)- Work feed X-axis
16 m/min
- Work feed Y-axis
16 m/min
- Work feed Z-axis
16 m/min
- Table load capacity
10,000 kg
(22,046 lb)- Weight
28,000 kg
(61,729.43 lb)- Overall length
4,395 mm
(173 in)- Overall width
8,220 mm
(323.6 in)- Overall height
4,360 mm
(171.7 in)
Description
The DBM s Series is optimally designed for machining medium to large-size molds, such as automotive, injection molding machines or press molds. It is equipped with a double-column structure and a Z-axis box guideway to ensure safety and reliability.
Reliability
Excellent Machining Capability
Multiple thermal displacement sensors are installed to minimize the corrective offset of thermal displacement for the spindle/structure, achieving high-precision machining
Transfer axis-related device to ensure precision accuracy
Roller-type LM guideways to increase the rigidity and ensure high precision of the linear transfer system
Reduced tool change time due to the adoption a CAM type ATC (standard)
