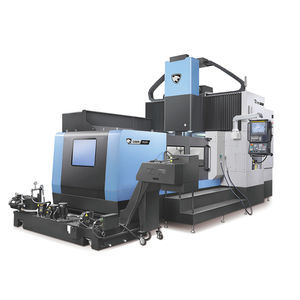

5-axis CNC machining center DBM seriesuniversaldouble-columnHSK-A 100
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- universal
- Structure
- double-column
- Spindle mount
- HSK-A 100
- Number of tool stations
- 60 tools
- Other characteristics
- high-speed, high-productivity, high-precision
- X travel
3,250 mm, 4,250 mm, 5,250 mm
(127.95 in, 167.32 in, 206.69 in)- Y travel
2,500 mm, 3,000 mm
(98.43 in, 118.11 in)- Z travel
1,000 mm
(39.37 in)- Rotational speed
15,000 rpm
(94,248 rad.min-1)- Power
34 kW, 46 kW
(46.23 hp, 62.54 hp)- Weight
37,000 kg, 41,000 kg, 46,000 kg, 50,000 kg, 54,000 kg
(81,571.04 lb, 90,389.53 lb, 101,412.64 lb, 110,231.13 lb, 119,049.62 lb)- Overall length
12,265 mm, 14,265 mm, 16,265 mm
(482.9 in, 561.6 in, 640.4 in)- Overall width
6,000 mm, 7,430 mm
(236.2 in, 292.5 in)- Overall height
5,810 mm
(228.7 in)
Description
The DBM U is a multi-purpose, double-column machining center that can perform 5-axis machining with the attachment of a universal head. It has a powerful spindle of over 1000Nm, a ram-type structure with an eight-sided support structure, and a double ball screw, which make it suitable for diverse machining applications. Moreover, to enhance precision, it incorporates a ball screw support bearing cooling system and adopts thermal deformation compensation as a standard, making it suitable for high-precision machining.
Easy to Operate
Stability
Broad range of machining capabilities
Auto-change attachments
Convenient machining functions
Easy pattern cycles
Work load counter control
Automatic feed control
