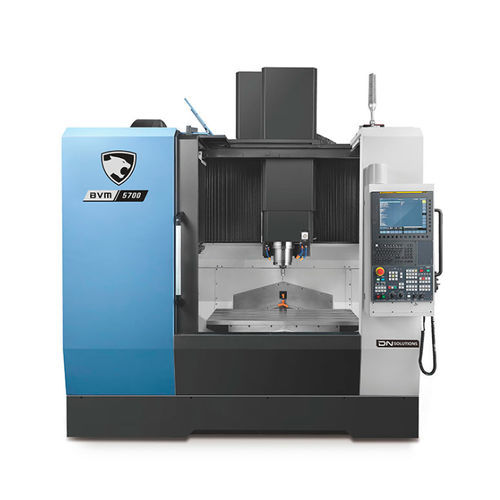

3-axis CNC machining center BVM 5700verticalbridgefor molds
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Structure
- bridge
- Applications
- for molds
- Other characteristics
- high-speed, high-productivity, high-precision, high-speed
- X travel
1,050 mm
(41.34 in)- Y travel
5,570 mm
(219.29 in)- Z travel
460 mm
(18.11 in)- Rotational speed
37 rpm
(232 rad.min-1)- Work feed X-axis
42 m/min
- Work feed Y-axis
42 m/min
- Work feed Z-axis
36 m/min
- Table load capacity
1,000 kg
(2,205 lb)- Weight
7,500 kg
(16,534.67 lb)- Overall length
3,080 mm
(121.3 in)- Overall width
2,560 mm
(100.8 in)- Overall height
2,890 mm
(113.8 in)
Description
Optimized for highly demanding die/mold operations, the BVM SERIES is a high-speed vertical machining center equipped with a Stable Bridge Type structure and a spindle of 15000r/min guaranteeing outstanding reliability in both precision and strength.
Reliability
Shortened Machining Time
Stability
Improved feed stability and surface quality in machining process
Improved processing precision through the application of a thermal displacement correcting function
An eco-friendly machine tool characterized by high-quality processing and easy operability
Standard application of nut cooling to improve precision
