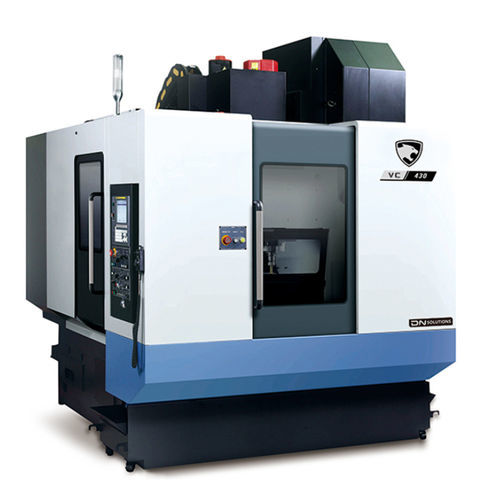

3-axis CNC machining center VC series
verticalcolumn typeISO 30

3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 2
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 3
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 4
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 5
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 6
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 7
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 8
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 9
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 10
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 11
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 12
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 13
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 14
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 15
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 16
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 17
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 18
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 19
3-axis CNC machining center - VC series  - DN SOLUTIONS - vertical / column type / ISO 30 - image - 20
Add to favorites
Compare this product


Characteristics

Number of axes
3-axis
Spindle orientation
vertical
Structure
column type
Spindle mount
ISO 30
Applications
heavy-duty
Other characteristics
high-speed, high-productivity, high-rigidity, with pallet changer
X travel

520 mm, 560 mm, 762 mm
(20.47 in, 22.05 in, 30 in)

Y travel

360 mm, 430 mm, 516 mm
(14.17 in, 16.93 in, 20.31 in)

Z travel

465 mm, 570 mm
(18.31 in, 22.44 in)

Rotational speed

15 rpm, 19 rpm
(94 rad.min-1, 119 rad.min-1)

Power

7 kW, 24 kW
(9.52 hp, 32.63 hp)

Work feed X-axis

40 m/min, 48 m/min

Work feed Y-axis

40 m/min, 48 m/min

Work feed Z-axis

32 m/min, 36 m/min, 48 m/min

Table load capacity

200 kg, 300 kg, 350 kg
(441 lb, 661 lb, 772 lb)

Weight

5,400 kg, 7,800 kg, 9,200 kg
(11,904.96 lb, 17,196.06 lb, 20,282.53 lb)

Overall length

2,890 mm, 3,260 mm, 3,660 mm
(113.8 in, 128.3 in, 144.1 in)

Overall width

2,200 mm, 2,580 mm, 2,690 mm
(86.6 in, 101.6 in, 105.9 in)

Overall height

2,010 mm, 3,030 mm, 3,130 mm
(79.1 in, 119.3 in, 123.2 in)

Description

VC series machining centers have a twin pallet configuration. Their design enables continuous and seamless machining of components - doubling output and significantly increasing productivity. Excellent Machining Capability Faster Machining Stability The twin table equipped with automatic pallet indexing enables fast and accurate table positioning, improved productivity and minimal machine idle time. Customization A range of features and options are available to further customize the machine and its operation.

VIDEO

Catalogs

VC 3600
VC 3600
4 Pages
