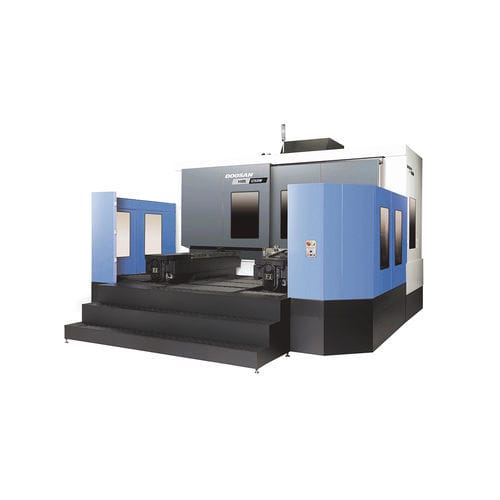

3-axis CNC machining center HM serieshorizontalISO 5060 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- horizontal
- Spindle mount
- ISO 50
- Number of tool stations
- 60 tools
- Applications
- for large workpieces
- Other characteristics
- high-performance, high-productivity, high-precision, with pallet changer
- X travel
2,100 mm
(82.68 in)- Y travel
1,250 mm, 1,400 mm, 1,500 mm
(49.21 in, 55.12 in, 59.06 in)- Z travel
1,250 mm, 1,400 mm, 1,500 mm
(49.21 in, 55.12 in, 59.06 in)- Rotational speed
3,000 rpm, 6,000 rpm, 8,000 rpm
(18,850 rad.min-1, 37,699 rad.min-1, 50,265 rad.min-1)- Power
22 kW, 26 kW, 30 kW, 37 kW, 45 kW
(29.91 hp, 35.35 hp, 40.79 hp, 50.31 hp, 61.18 hp)- Work feed X-axis
24 m/min
- Work feed Y-axis
24 m/min
- Work feed Z-axis
24 m/min
- Table load capacity
3,000 kg, 5,000 kg
(6,614 lb, 11,023 lb)- Weight
29,000 kg, 31,000 kg, 33,000 kg
(63,934.06 lb, 68,343.3 lb, 72,752.55 lb)- Overall length
9,657 mm, 10,530 mm, 11,526 mm
(380.2 in, 414.6 in, 453.8 in)- Overall width
5,822 mm
(229.2 in)- Overall height
3,885 mm, 4,130 mm, 4,581 mm
(153 in, 162.6 in, 180.4 in)
Description
With close to 2,590 ft-lbs (3511N-m ) of spindle torque and large-capacity pallets,DN SOLUTIONS’s HM Series deliver huge productivity gains and great added value.
Reliability
Excellent Machining Capability
Stability
General type and optional W axis applications
