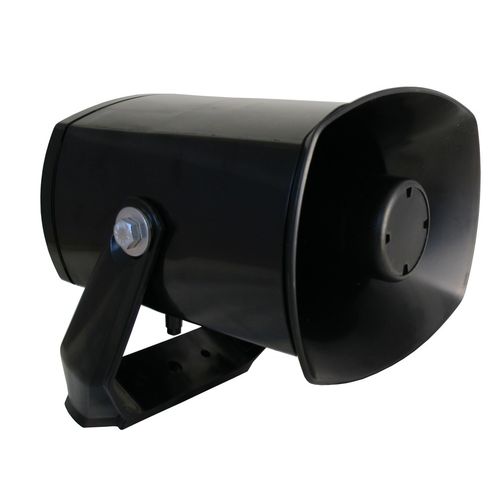

Plastic housing loudspeaker DSP-15EExmN(T)bracket-mountedexplosion-proof
Add to favorites
Compare this product
Characteristics
- Mounting
- bracket-mounted
- Other characteristics
- explosion-proof, plastic housing
- Sound level
106 dB, 118 dB
Description
25W Ex plastic horn speaker.This versatile model can be ordered with different transformers for more tappings and power ratings. DSP-15 EExmN(T) is light and has M20 entries in the back lid for easy cable mounting. Extra termination space for loop in loop out purpose as standard. Now also with certificate for USA and Canada.
Material/Colour:
Anti-static PA / Black
Mounting:
Bracket or swivel bracket
Termination:
e-chamber, loop in/out, push terminals
Weight:
2,2 kg
IP Rating:
66 / 67
Max./min.amb.temp:
60°C / -50°C
Rated/max power:
25 W / 30 W
SPL 1W/1m:
106 db
SPL Rated Power:
118 db
Effective freq. Range:
380 – 8000 Hz
Dispersion (-6dB) 1kHz / 4kHz:
120° / 37°
Options:
Impedance, label, transformers
