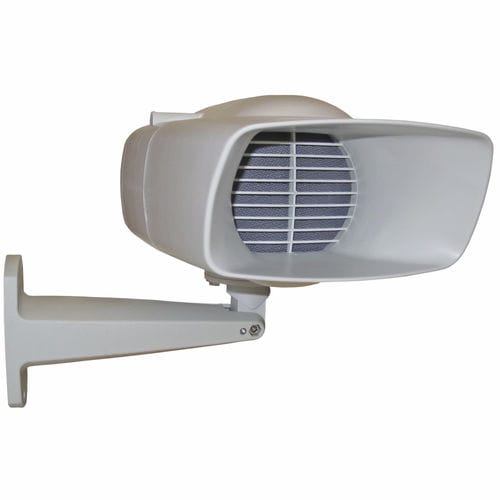

DP-10 is a one way projector model, 10 W. This range is specially designed for applications such as railways and airports. The high sensitivity and extended frequency range make the model excellent for public address systems and background music.
Material/Colour:
Ronfalin (5VA) / RAL 7035
Mounting:
Polyamide Swivel Bracket
Termination:
Screw terminals
Weight:
2,4 kg
IP Rating:
55
Max./min.amb.temp:
90 °C / -40 °C
Rated/max power:
10W / 15W
SPL 1W/1m:
92 db
SPL Rated Power:
102 db
Effective freq. Range:
140– 16000 Hz
Dispersion (-6dB) 1kHz / 4kHz:
120° / 41° (horizontal)
Options:
Impedance, color, label
