Ceiling loudspeaker BF-560(T)

ceiling loudspeaker
ceiling loudspeaker
Add to favorites
Compare this product


Characteristics

Mounting
ceiling
Sound level

90 dB, 97 dB

Description

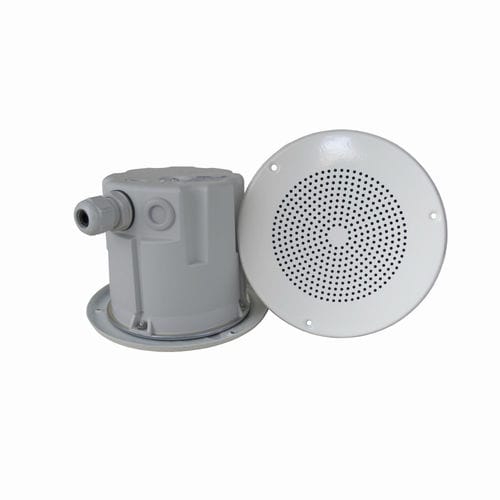

5" 6W ceiling speaker with dust box in PA-6. Versatile, can be used in most installations for speech, alarm and music because of its wide frequency range. Mounting of the loudspeaker is very easy by using 3 screws in front of the loudspeaker. Material/Colour: Aluminum front RAL 9010, Box in PA-6 V0 Mounting: 3 screws Termination: Spring clamps Weight: 0,73 kg IP Rating: 22 Max./min.amb.temp: 90°C / -20°C Rated/max power: 6 W / 15 W SPL 1W/1m: 90 db SPL Rated Power: 97 db Effective freq. Range: 140 – 20000Hz Dispersion (-6dB) 1kHz / 4kHz: 160° / 55° (baffle) Options: Impedance, color, label
