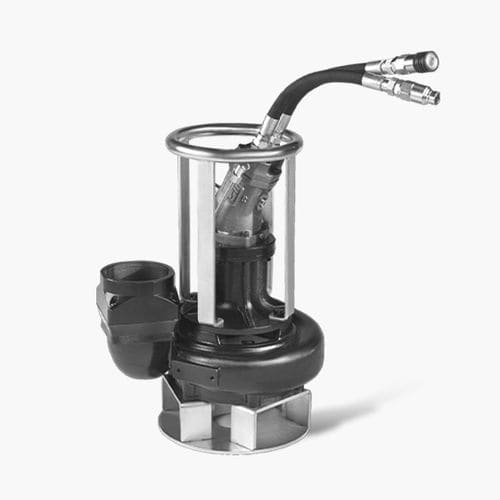

Impeller pump SP 65
for wastewaterhydraulic pistonsubmersible

Impeller pump - SP 65 - DOA Hydraulic Tools Srl - for wastewater / hydraulic piston / submersible
Impeller pump - SP 65 - DOA Hydraulic Tools Srl - for wastewater / hydraulic piston / submersible
Impeller pump - SP 65 - DOA Hydraulic Tools Srl - for wastewater / hydraulic piston / submersible - image - 2
Impeller pump - SP 65 - DOA Hydraulic Tools Srl - for wastewater / hydraulic piston / submersible - image - 3
Impeller pump - SP 65 - DOA Hydraulic Tools Srl - for wastewater / hydraulic piston / submersible - image - 4
Add to favorites
Compare this product


Characteristics

Technology
impeller
Fluid
for wastewater
Operation
hydraulic piston
Priming
submersible
Mobility
stationary
Domain
industrial
Applications
discharge, sewage, mixer
Protection level
immersion
Other characteristics
large, linear, cutter
Flow

Min.: 60 l/min
(15.85032 us gal/min)

Max.: 8,000 l/min
(2,113.37642 us gal/min)

Pressure

Min.: 17 bar
(246.564 psi)

Max.: 350 bar
(5,076.321 psi)

Head

39 m
(127'11" )

Length

550 mm
(22 in)

Height

900 mm
(35.43 in)

Weight

135 kg
(297.62 lb)

Description

• Pump everything! The shearing impeller can shred and pump branches, algae, rags, ropes, bags and solid objects with dimensions up to 55 mm • High performance, weight/size/power ratio unmatched by other types of pump - long working life, minimal maintenance • No electricity means safety, it can be used while standing in the water close to the pump (a situation forbidden by law with electro pumps) • The piston engine guarantees maximum efficiency and the possibility of running the pump dry without damaging it • Possibility to install the SG6 mixer accessory whit the function of liquified liquids that are very dense or dry into more fluid liquids and therefore pumpable SP65 is a powerful immersion trash pump for sewage water with hydraulic piston motor and 6” discharge port, ideal for pumping clear and dirty water, in emergency interventions in civil protection, in the military sector and in the movement of large volumes of charged fluids. The maximum capacity is 8000 L / min with head up to 39 meters - pumpable solids 6.5 cm. The particular impeller with cutting knives allows cutting and pumping also suspended solids such as leaves, branches, rags, algae, ropes or even large linear fibers. The hydraulic operation offers a long series of safety, operational and performance advantages that can not be obtained from traditional priming or electropump pumps. A typical application is that of the pump mounted on the excavator arms instead of the bucket, transforms the excavators into very powerful water scoops.

VIDEO
