Cartridge pump WHY 1520waterhydraulic motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- cartridge
- Fluid
- water
- Operation
- hydraulic motor
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- high-pressure, for control, washing
- Material
- ceramic
- Other characteristics
- compact, standard
- Flow
15 l/min, 27 l/min, 45 l/min
(3.96258 us gal/min, 7.13265 us gal/min, 1,589.16 us gal/min)- Pressure
150 bar, 200 bar
(2,175.566 psi, 2,900.755 psi)- Length
260 mm, 300 mm
(10 in, 12 in)- Width
220 mm, 240 mm
(8.66 in, 9.45 in)- Height
290 mm, 540 mm
(11.42 in, 21.26 in)- Weight
12 kg, 15 kg, 16 kg
(26.46 lb, 33.07 lb, 35.27 lb)
Description
• Quieteness, no vibrations,low maintenance needs
• Compact dimension allows an easy installation onboard machines
• With “canal jet” accessory can unblock obstructed ducts, sewers, drain pipes etc.
• Chemical injector for the suction of solvents, soaps and additive, is available on request

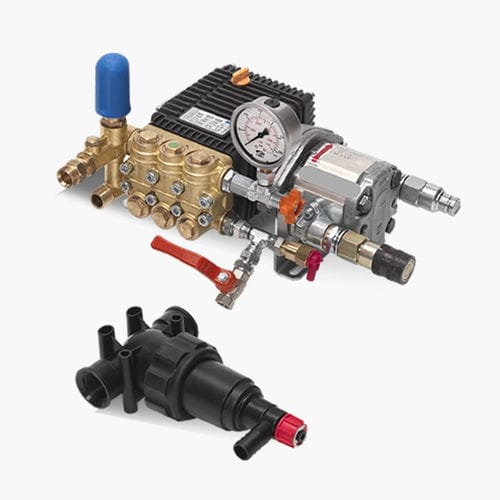

Professional pressure washer pumps powered by gear hydraulic motor available in different configurations. Rotative water pumping part with three ceramic pistons to as sure as long reliable service.
Hydraulic functioning is implicit safety, no current means no possibility of electric shock hazard. Standard hydraulic motor without regulations. Hydraulic motor with pre-regulated cartridge at the factory for control of oil flow/speed. Cartridge cannot be adjusted this to prevent wrong regulations of the cartridge itself. Hydraulic motor with adjustable control of: maximum flow/speed and pressure, with electric solenoid 12V or 24V to stop pump rotation when trigger of water gun is released
