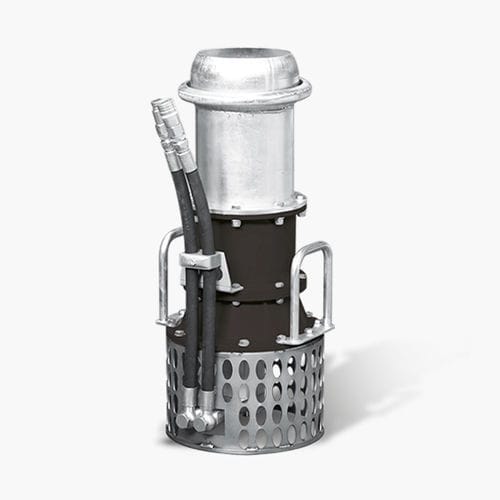

Impeller pump AP 80
waterslurryhydraulic motor

Impeller pump - AP 80 - DOA Hydraulic Tools Srl - water / slurry / hydraulic motor
Impeller pump - AP 80 - DOA Hydraulic Tools Srl - water / slurry / hydraulic motor
Add to favorites
Compare this product


Characteristics

Technology
impeller
Fluid
water, slurry
Operation
hydraulic motor
Priming
submersible
Mobility
stationary
Domain
industrial
Applications
transfer, discharge, sewage, treatment, outlet, transport, transporting, dewatering
Material
cast iron
Protection level
submersible, robust
Other characteristics
suction, large, open, flow, dry, rugged
Flow

Min.: 50 l/min
(13.2086 us gal/min)

Max.: 10,200 l/min
(2,694.55493 us gal/min)

Pressure

Min.: 17 bar
(246.564 psi)

Max.: 200 bar
(2,900.755 psi)

Length

380 mm
(15 in)

Width

468 mm
(18.43 in)

Height

540 mm
(21.26 in)

Weight

52 kg
(114.64 lb)

Description

•Unbeatable pumping power: The AP80 is a top outlet 8” submersible slurry pump that is designed for large pumping applications where is necessary to move large volumes of water quickly and efficiently, up to 170 l/s. AP80 is a concentration of high performance in a lightweight cast-iron body of only 50 kgs. •Uniquely designed, the robust AP80 submersible slurry pump is built from a rugged lightweight cast iron material with chrome iron impeller, agitator, and wear plate that provides durability and impact resistance in rough conditions. These robust submersible slurry pumps serve a wide range of slurry transport applications like mining, quarrying, construction sites, and other demanding industries. • No electricity means safety, it can be used while standing in the water close to the pump (a situation forbidden by law with electro pumps). • The piston engine guarantees maximum efficiency and the possibility of running the pump dry without damaging it. AP80 Submersible Slurry Pumps are rugged, reliable, and cost-effective pumps for transporting slurry, sand, and a variety of other abrasive materials. This dependable pump offers an open stand or strainer, and agitator that provides the highest suction and movement of solids up to 2.5 cm through an 8-inch discharge. The ergonomic AP80 submersible slurry pumps transfer solids and liquids at a flow rate of up to 10,200 lpm and with a head of 8 metres MAX. The AP80 is ideal in large dewatering works, rental activity, civil protection, the military sector and sewage treatment plants where it is necessary to quickly move large volumes of water and heavy loaded fluids
