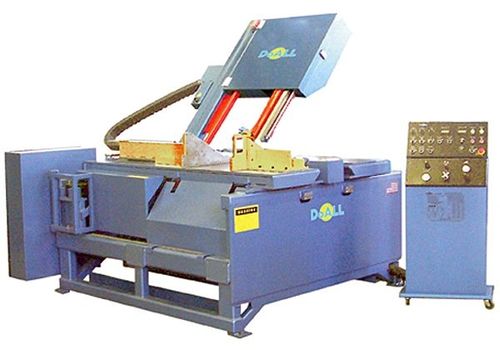

Band saw 20" (510 mm) @ 90° | TF-2025M

horizontalautomatic

TF-2025M TF 2025 Series machines are available in both manual and numerically-controlled models and feature angle cutting capabilities up to 60º in either direction. Both the manual and NC models feature standard variable vise pressure controls, hydraulic head tilt with digital readout, full stroke hydraulic clamp cylinders and PLC operator controls. Standard Equipment: -Calibrated feed force adjustment -Wheel driven band cleaning brush -Coolant system, separate pump and motor -High-torque, hydraulic variable speed drive -Linear bearings for head carriage -Shovel rake -Variable vise pressure controls -Idler wheel motion detector -Hydraulic positioned upper saw guide post -Spring-loaded, carbide-faced insert saw guides for 1-1/4" saw band -Replaceable wear plates on vise jaws and table -60° left and right angle cutting capability -Flushing hose -Instruction and parts manual -One Bi-metal saw band -Hydraulic band tension and break switch -Hydraulic head-tilt with digital read out -Full stroke hydraulic clamp cylinders -Job selector Optional Accessories -Set of right hand vises -Powered chip conveyor -Set of vertical guide rollers -3° head -Gravity roller conveyor -Mist band lubricator
