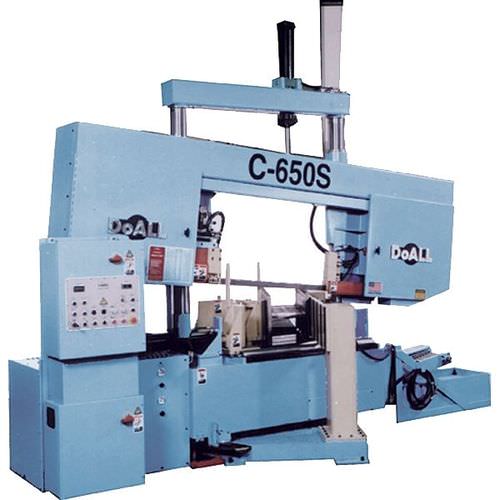

C-650S
These saws feature a full 26” (660 mm) cutting capacity and are available in 3 models with manual or automatic numerical control and a stationary or swivel base for production sawing of all materials including structurals and solids. Saw blade is set at 6° cant allowing for more effective cutting on structurals and tubing.
Standard Equipment:
-Powered chip conveyor
-Bandwheel door interlocks
-Rapid saw head approach
-Servo controlled feed pressure
-Band canted 6°
-Teflon and bronze column bushings
-Complimentary coolant package
-Manual and semi automatic cut cycles
-Infinitely variable band speed inverter drive
-Hardened, ground and polished hard chromed guide columns
-Hydraulically actuated, zero clearance carbide-faced saw guide inserts
-Hydraulic band tension
-Chip shovel
-Band break switch
-Digital angle readout
-One Bi-metal saw band
-Mist blade lubrication system
-Instruction and spare parts manual
-Hydraulically powered left hand guide arm
-Hydraulically driven band cleaning brush
-Switchable, digital readout of band speed, FPM or M/M
-ATF hydraulic oil for wide range temperature applications
Optional Accessories:
-Variable vise pressure control
-Vertical hold down fixtures
-Flood coolant assembly
-Digital controlled band twist monitor
-Out/infeed idler conveyor
