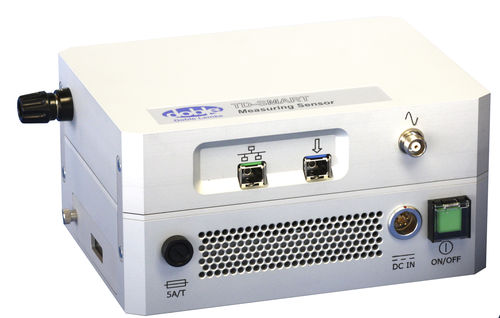

Power factor monitor TD-Smart

The digital dissipation and capacitance measuring system TD-SMART is a high-precise, modular acqusition and analysis system for measruing the current and other key characteristics of electrical equipment, including dissipation & power factor as well as capacitance. Dissipation factor and capacitance testing on: • Motors and generators • Motor bars and generator bars • Power transformers and transducers • Cables • Capacitors • Any other power apparatus or insulating material User Benefits: • Outstanding measuring accuracy of the TD-Smart. This is proved and certified by SP Technical Research Institute of Sweden. • No manual and time-expensive balancing (e.g. Schering-Bridge) required. The TD-Smart allows a very fast and fully automatic balancing due to its advanced digital signal processing FPGA hardware. • Small, compact and rugged design for stationary and on-site use. • Complete electrical insulation between the acquisition units and the control stations via FOL-cabling. The fibre-optic links are extendable up to a distance of 20 km. • Integrated battery for stand-alone use. No further units are necessary.
