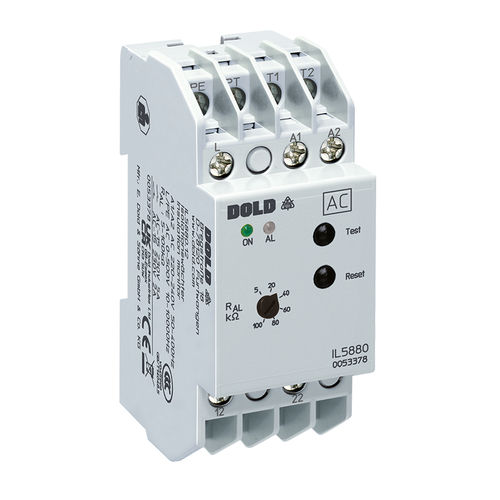

AC network insulation monitor IL 5880

DIN railfor generators

Features • According to IEC/EN 61 557-8 • For single and 3-phase AC-systems up to 0 ... 500 V and 10 ... 10000 Hz • Adjustable tripping value RAL of 5 ... 100 kΩ • Monitors also disconnected voltage systems • De-energized on trip • Auxiliary voltage Measuring Circuit and output contacts are galvanically separated • Manual and auto reset • With test and reset button • Connections of external test and reset buttons possible • LED indicators for operation and alarm • 2 changeover contacts • IL/SL 5880/200 with additional prewarning - adjustable prewarning value 10 kΩ ... 5 MΩ - output function programmable • Variant IL/SL 5880/300 according to DIN VDE 0100-551 for mobile generator sets available • 4 models available: IL 5880, IP 5880: 61 mm deep with terminals near to the bottom to be mounted in consumer units or industrial distribution systems according to DIN 43 880 SL 5880, SP 5880: 98 mm deep with terminals near to the top to be mounted in cabinets with mounting plate and cable ducts • DIN rail or screw mounting • 35 mm width
