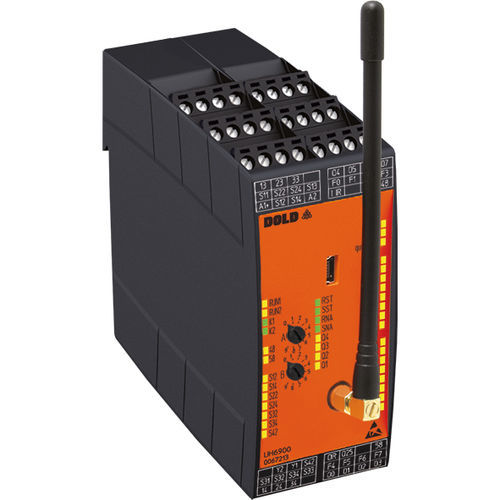

Radio safety device UH 6900 MF

The radio controlled safety module UH 6900 is an innovative wireless safety system to protect man and machine. A feature of the Wireless Safety System is its safety-oriented bi-directional radio transmission for transmitting signals between two wireless safety modules so that the two separate safety devices, each of them installed on a different machine part that is not connected to the other by wires (for example, moving machine parts), work together as one system. Therefore SAFEMASTER W radio-controlled safety modules are intended for the wireless remote control of machines and plant parts that used to be controlled by cable. Their usage is only restricted by valid safety instructions that prohibit, for example, staying under suspended loads. Typical applications are: • Hazard areas where protective equipment is necessary for the safety of persons but where wiring is impossible or not reasonable, for example in applications with extremely wide-spread, extensive hazard zones; • Mobile and stationary plants and equipment, for example large machines, assembly halls and scaffolds, conveyor belts, high-rack warehouses, warehouses, forklifts, etc. • The radio transmission range is up to 800 m Technical specifications Width: : 45 mm Cat. / PL acc. to EN ISO 13849-1: : 4/e SIL CL acc. to IEC/EN 62061: : 3 SIL acc. to IEC/EN 61508: : 3 SIL acc. to IEC/EN 61511: : 3 Frequency band: : 433 / 434, 869, 915 MHz 2-channel safety inputs max.: : 3 Safety outputs: : 2 NO contacts, 3 NO contacts Semiconductor outputs max.: : 8 Semiconductor inputs max.: : 8 Connection: : Pluggable screw terminals, Pluggable cage clamp terminals, Pluggable cage clamp terminals 2-wire Type: : UH 6900
