Motor starter UG 6946

voltagethree-phasethree-phase

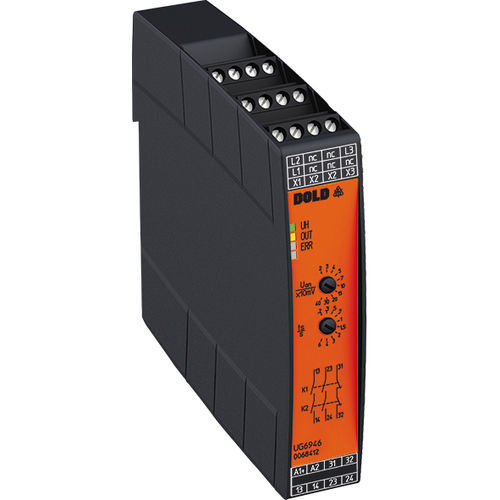

Product description The safe sensorless UG 6946 standstill monitor is suitable for detects the standstill of 3-phase and 1-phase electric motors independent of the direction of rotation. This means sensors such as encoders or proximity switches are not required. The standstill monitor measures the induced voltage of the coasting motor. If the induced voltage approaches 0, this means motor standstill for the device and the output relay is activated. With a width of only 22.5 mm, the UG 6946 can be accommodated in the control panel even under tight space conditions allowing easy retrofitting. For the implementation of different operating modes, the standstill monitor also offers the possibility of bridging the standstill monitoring (muting). Technical specifications Width: : 22,5 mm Classification: : Sensorless Cat. / PL acc. to EN ISO 13849-1: : 4/e SIL CL acc. to IEC/EN 62061: : 3 Nominal voltage: : DC Thermal current Ith max.: : 5 A 1- / 2-channel: : 2 Measuring motor voltage max.: : 690 V Forcibly guided output contacts max.: : 2 NO contacts, 1 NC contact Type: : UG 6946 Advantages • Without sensor and safe • Fast reaction time • Easy to retrofit • Combined with Interlock SAFEMASTER STS • Protection against manipulation by sealable transparent cover over setting switches Features • According to - Perf. Level (PL) e and category 4 to EN ISO 13849-1, EN 61800-5-2 - SIL-Claimed Level (SIL CL) 3 to IEC/EN 62061 - Safety Integrity Level (SIL) 3 to IEC/EN 61508, IEC/EN 61511 and EN 61800-5-2 • Safe standstill detection on 3- and single-phase motors • No external sensors necessary • Independent of direction • Broken wire detection
