Safety relay UG 69602 NOemergency stopfor light curtain
Add to favorites
Compare this product
Characteristics
- Measured/monitored value
- safety
- Contact configuration
- 2 NO
- Applications
- emergency stop, for light curtain
- Mounting
- DIN rail
- Norms
- IEC, SIL
- Other characteristics
- time delay, multifunction
Description

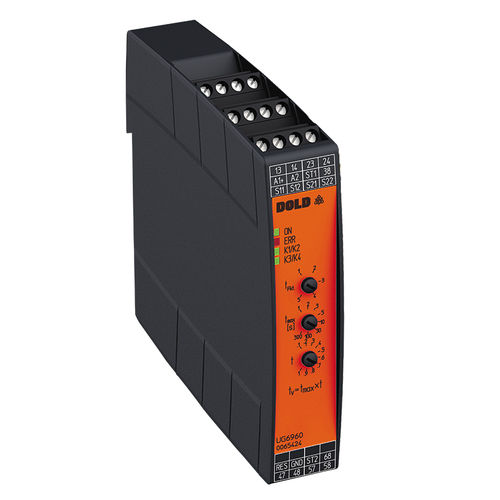

The multifunctional safety timer UG 6960 from the SAFEMASTER C family serves the protection of staff and machinery by releasing and interrupting safety circuits. The UG 6960 combines safety time functions and safety functions in one device. Five different time functions with delay times of up to 300 minutes can be implemented, and selected flexibly and without programming via latching rotary switches. Besides safety functions such as emergency stop, protective door, non-equivalent safety sensor, two-hand or light barrier, it also allows you to connect your safety-related safety-mats and safety edges. The fine adjustment of time which is also done gradually via latching rotary switches is particularly advantageous for an optimal adjustment of the device in accordance with your application.
