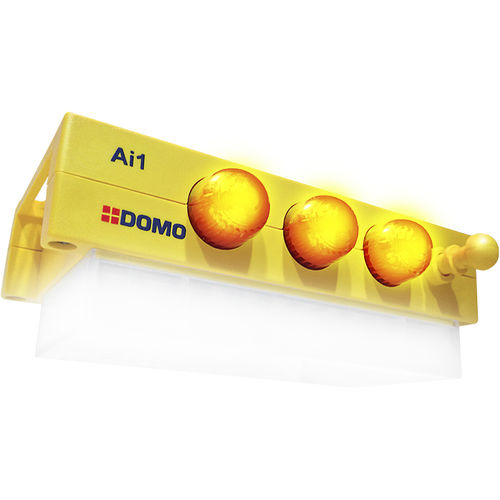

Blinking signaling device Ai1 series

Everything you need to inspect electrical panels in the safest way. And it's all integrated in a single device, compact and accessible. DOMO Ai1 can help prevent accidents by warning the operator and signaling that the electric system is active with flashing lights and a repeating sound. As the door opens, the integrated limit switch also enables or disables other devices and activates a light that illuminates the inside of the electrical panel. Blinking LED lights The three LED lights flash to indicate the presence of tension inside the electrical panel. Different flashing sequences indicate the condition of the electrical panel. SEQUENTIAL BLINKING presence of 400V tension inside the electrical panel circuits correctly phased RANDOM BLINKING presence of 400V tension inside the electrical panel circuits not correctly phased SIMULTANEOUS BLINKING presence of 240Vac tension inside the electrical panel Buzzer sound A repeated sound warns you of the presence of tension when the door is open. Sound can be temporarily turned off using the switch located under the device. Limit switch The integrated limit switch activates all the functions of the device at the cabinet door opening. You can choose between two different switch sizes. CLOSED DOOR SIMULATION By pulling the switch, you simulate the closed door: all the auxiliary contacts are restored to the condition of closed door. High intensity light A 900lm light powered by a 48 LED cluster illuminates the inside of the electrical panel facilitating the operator's intervention. Auxiliary contacts Have the most under control: enable or disable any device inside the electrical panel (lights,
