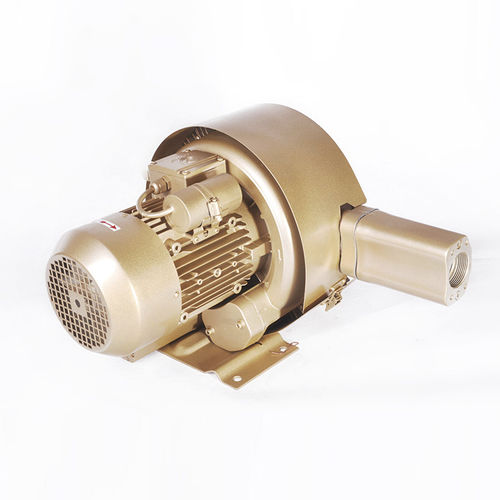

Air blower GHBH 002 12 2R4side-channeltwo-stagefor vacuum
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- two-stage
- Applications
- for vacuum
- Other characteristics
- single-phase
- Flow
Max.: 150 m³/h
(5,297.2 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Operating pressure
Max.: 260 mbar
(3.771 psi)Min.: 0 mbar
(0 psi)- Nominal power
1.5 kW
(2.039 hp)
Description
Phase: Single
Frequency: 50/60 (Hz)
Rated Power: 1.5/1.75(kW)
Rated Voltage: 200-240/220-275 (V)
Rated Current: 9.0/10.0 (A)
Max Airflow: 150/180 (m3/h)
Max Vacuum:-280 /-250 (mbar)
Rated Pressure:290/280 (mbar)
Sound:66 dB(A)
Weight: 26 (kg)
Why choose GOORUI blower?
High efficiency motor；
IP55 & Insulation class H；
Built-in Thermal Protector(PTC)；
High Temperature-Resistance bearing；
Special customized blower and OEM available；
24 months warranty and long-term technical support；
CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
