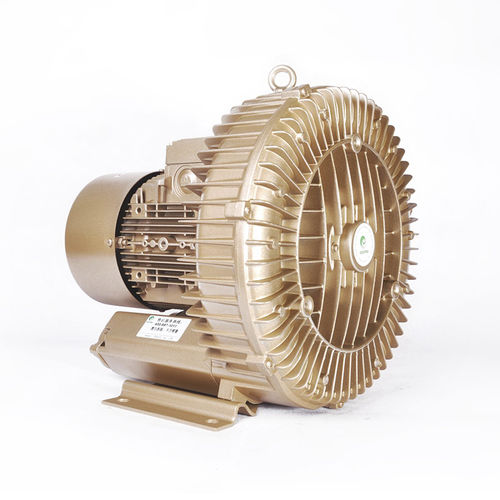

Air blower GHBH 003 34 AR5ringsingle-stagefor vacuum
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- ring
- Number of stages
- single-stage
- Applications
- for vacuum, regenerative
- Other characteristics
- three-phase
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 270 m³/h
(9,534.96 ft³/h)- Operating pressure
Min.: 0 mbar
(0 psi)Max.: 230 mbar
(3.336 psi)- Nominal power
2.2 kW
(2.991 hp)
Description
Phase: Three
Frequency:50/60 (Hz)
Rated Power: 2.2/2.55(kW)
Rated Voltage: 220-240△345-415Y | 220-275△380-480Y (V)
Rated Current:9.7△/5.6Y | 10.3△/6.0Y (A)
Max AirFlow: 270/330 (m3/h)
Max Vacuum:-220/-260 (mbar)
Max Pressure:230/250 (mbar)
Sound: 65 dB(A)
Weight: 26 (kg)
Why choose GOORUI blower?
High efficiency motor；
IP55 & Insulation class H；
Built-in Thermal Protector(PTC)；
High Temperature-Resistance bearing；
Special customized blower and OEM available；
24 months warranty and long-term technical support；
CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
