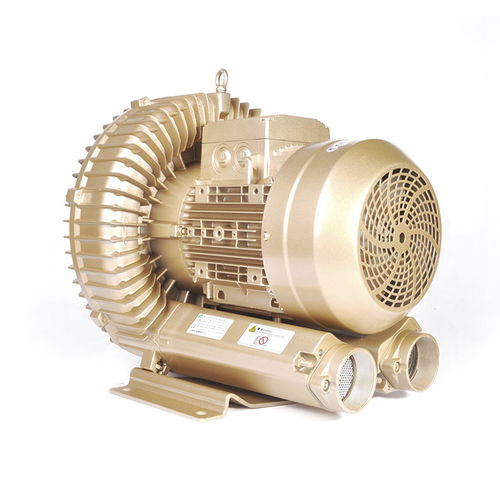

Air blower GHBH 7D5 36 1R8 - IE3side-channelsingle-stagefor vacuum
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- single-stage
- Applications
- for vacuum
- Other characteristics
- three-phase
- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 530 m³/h
(18,716.773 ft³/h)- Operating pressure
Min.: 0 mbar
(0 psi)Max.: 320 mbar
(4.641 psi)- Nominal power
5.5 kW
(7.478 hp)
Description
Phase: Three
Frequency:50/60(Hz)
Rated Power:5.5/6.3(kW)
Rated Voltage:345-415△600-690Y|380-480△660-720Y (V)
Rated Current:13.3△/7.7Y|13.3△/7.7Y (A)
Max AirFlow: 530/620 (m3/h)
Max Vacuum:-300/-300 (mbar)
Max Pressure:300/280 (mbar)
Sound: 70 dB(A)
Weight:63(kg)
Why choose GOORUI blower?
High efficiency motor；
IP55 & Insulation class H；
Built-in Thermal Protector(PTC)；
High Temperature-Resistance bearing；
Special customized blower and OEM available；
24 months warranty and long-term technical support；
CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
