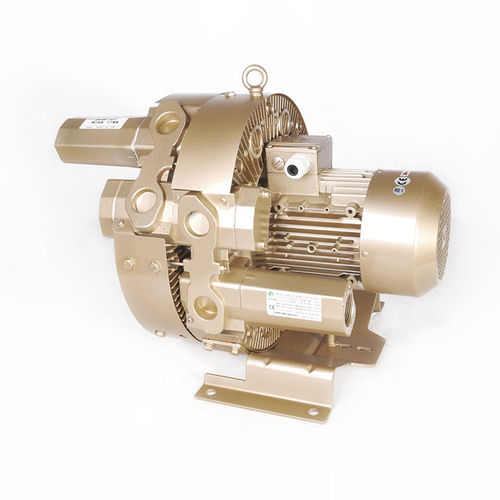

Air blower GHBG 5D5 36 2R5side-channeltwo-stagefor vacuum
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- two-stage
- Applications
- for vacuum
- Other characteristics
- three-phase
- Flow
Max.: 120 m³/h
(4,237.76 ft³/h)Min.: 0 m³/h
(0 ft³/h)- Operating pressure
Max.: 820 mbar
(11.893 psi)Min.: 0 mbar
(0 psi)- Nominal power
4 kW
(5.438 hp)
Description
Phase: Three
Frequency: 50/60(Hz)
Rated Power: 4/4.6 (kW)
Rated Voltage:345-415△ | 380-480△ (V)
Rated Current: 9.0△ | 9.5△/(A)
Max AirFlow: 120/145 (m3/h)
Max Vacuum:-500/-530 (mbar)
Max Pressure:820/810 (mbar)
Sound: 65 dB(A)
Weight: 51 (kg)
Why choose GOORUI blower?
High efficiency motor；
IP55 & Insulation class H；
Built-in Thermal Protector(PTC)；
High Temperature-Resistance bearing；
Special customized blower and OEM available；
24 months warranty and long-term technical support；
CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
