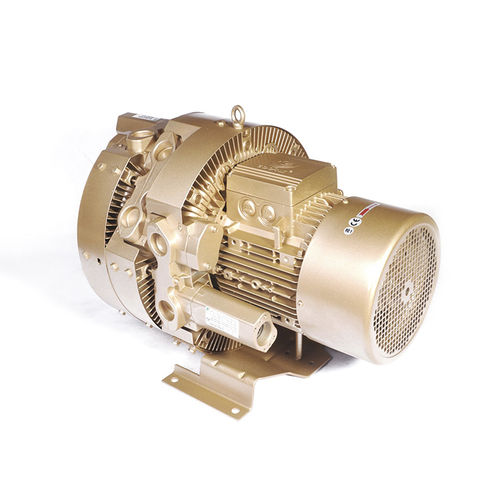

Air blower GHBG 010 36 3R6
side-channelthree-stagefor vacuum

air blower
air blower
air blower
Add to favorites
Compare this product


Characteristics

Type
air
Technology
side-channel
Number of stages
three-stage
Applications
for vacuum
Other characteristics
three-phase
Flow

Max.: 170 m³/h
(6,003.493 ft³/h)

Min.: 0 m³/h
(0 ft³/h)

Operating pressure

Max.: 1,040 mbar
(15.084 psi)

Min.: 0 mbar
(0 psi)

Nominal power

7.5 kW
(10.197 hp)

Description

Phase: Three Frequency: 50/60(Hz) Rated Power: 7.5/8.6 (kW) Rated Voltage:345-415△ | 380-480△ (V) Rated Current: 16.0△ | 16.0△/(A) Max AirFlow: 170/200 (m3/h) Max Vacuum:-730/-700 (mbar) Max Pressure:1040/1040 (mbar) Sound: 72 dB(A) Weight: 85 (kg) Why choose GOORUI blower? High efficiency motor; IP55 & Insulation class H; Built-in Thermal Protector(PTC); High Temperature-Resistance bearing; Special customized blower and OEM available; 24 months warranty and long-term technical support; CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
