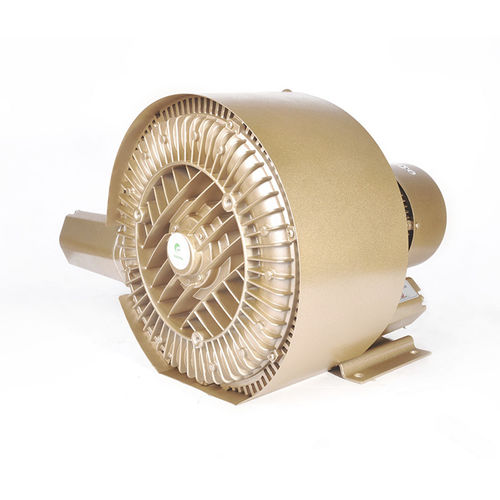

Air blower GHBH 015 36 2R8side-channelsingle-stagefor vacuum
Add to favorites
Compare this product
Characteristics
- Type
- air
- Technology
- side-channel
- Number of stages
- single-stage
- Applications
- for vacuum, conveying
- Other characteristics
- oil-free, three-phase
- Flow
520 m³/h
(18,363.63 ft³/h)- Operating pressure
660 mbar
(9.572 psi)- Nominal power
11 kW
(14.956 hp)
Description
Phase: Three
Frequency:50/60(Hz)
Rated Power:11/12.6(kW)
Rated Voltage:345-415△600-690Y | 380-480△660-720Y (V)
Rated Current:28.0△/16.2Y | 29.0△/16.7Y (A)
Max AirFlow: 520/620 (m3/h)
Max Vacuum:-460/-490 (mbar)
Max Pressure:670/750 (mbar)
Sound: 74 dB(A)
Weight:120(kg)
Why choose GOORUI blower?
High efficiency motor；
IP55 & Insulation class H；
Built-in Thermal Protector(PTC)；
High Temperature-Resistance bearing；
Special customized blower and OEM available；
24 months warranty and long-term technical support；
CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
