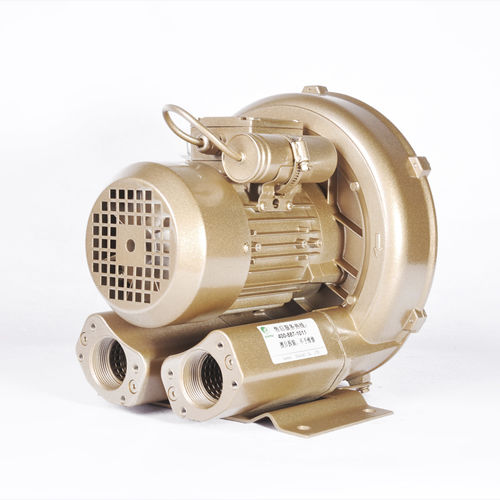

Gas blower GHBH 1D2 12 1R4side-channelsingle-stagefor vacuum
Add to favorites
Compare this product
Characteristics
- Type
- gas
- Technology
- side-channel
- Number of stages
- single-stage
- Applications
- for vacuum, regenerative
- Voltage / frequency
- 220 V / 50 Hz, 220 v / 60 Hz
- Other characteristics
- oil-free, single-phase
- Flow
145 m³/h, 175 m³/h
(5,120.627 ft³/h, 6,180.067 ft³/h)- Operating pressure
Min.: -160 mbar
(-2.321 psi)Max.: 160 mbar
(2.321 psi)- Nominal power
0.8 kW, 0.9 kW
(1.088 hp, 1.224 hp)- Sound level
63 dB, 64 dB
- Weight
15 kg
(33.07 lb)
Description
Frequency: 50(Hz)
Rated Power: 0.8 (kW)
Rated Voltage: 200-240 (V)
Rated Current: 5.2 (A)
Max Airflow: 145 (m3/h)
Max Vacuum:-150 (mbar)
Rated Pressure:160 (mbar)
Sound:63 dB(A)
Weight:15 (kg)
Why choose GOORUI blower?
High efficiency motor；
IP55 & Insulation class H；
Built-in Thermal Protector(PTC)；
High Temperature-Resistance bearing；
Special customized blower and OEM available；
24 months warranty and long-term technical support；
CCC, CE, SGS, TUV, RoHS, ISO9001 certification approved.
